Schmalz 3G-OTH-171686 — Technical Specifications

Name: Schmalz 3G-OTH-171686 SCHMALZ Vacuum Pad Assembly: G1/4 in, 53.9 mm Pad Dia, Elastodur ED, Green, 23.2 mm Pad Ht, 65 A (MPN 10.01.01.13248). Key specifications — attr1019194: 10.01.01.13248; attr1019196: SCHMALZ; attr1019197: 65 A.
Brand: Schmalz

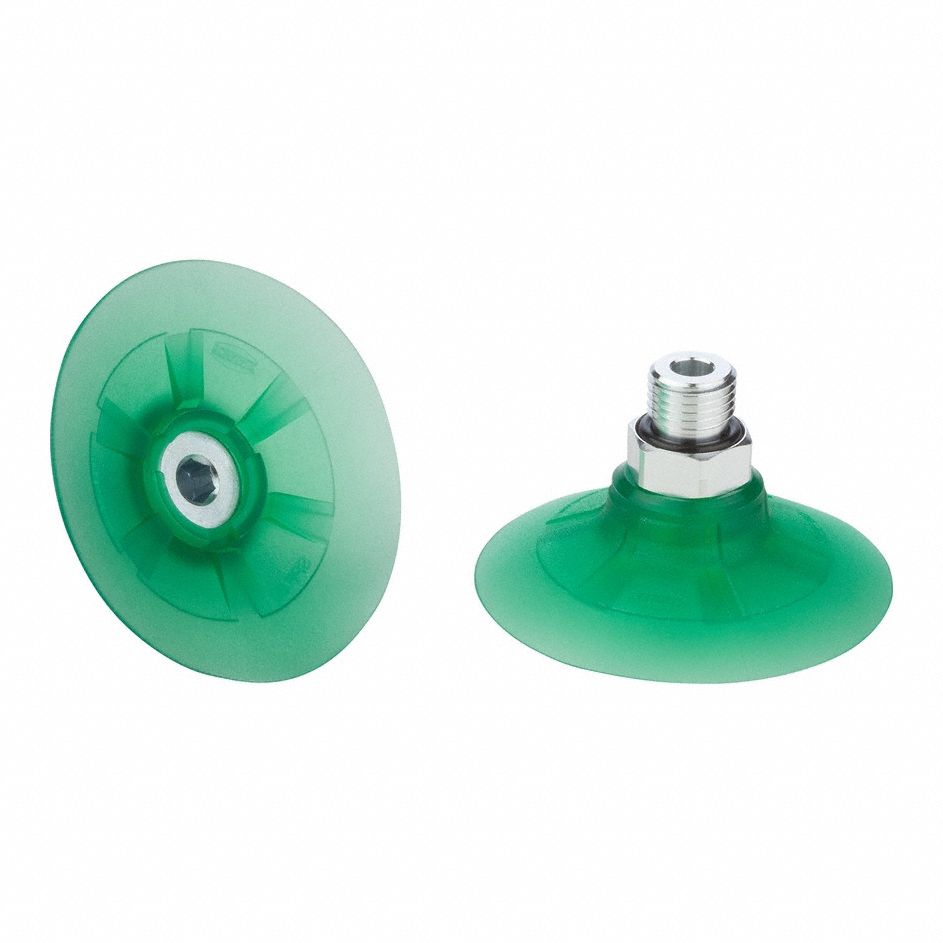

The SCHMALZ Vacuum Pad Assembly (SKU 814HK7, MPN 10.01.01.13248) is a flat type packaging industry vacuum pad assembly with a G1/4 in connection. It features a 53.9 mm pad diameter, 23.2 mm pad height, and is made of green Elastodur ED material. The assembly is rated at 65 A.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Elastodur ED, Green, 65 A
Pad Ht	23.2 mm
Pad Dia	53.9 mm
Manufacturer Part Number	10.01.01.13248
