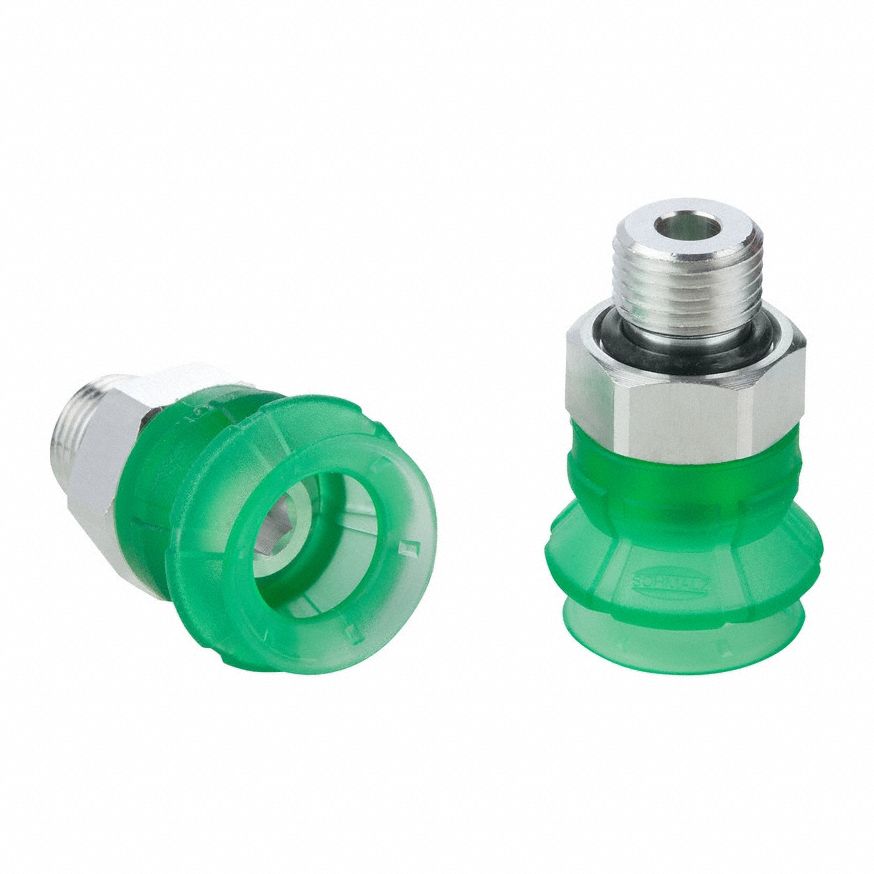

Schmalz 3G-OTH-154061 — Technical Specifications

Name: Schmalz 3G-OTH-154061 SCHMALZ Vacuum Pad Assembly: 1.5 Folds, M5, 11.3 mm Pad Dia, Elastodur ED, Green, 17.1 mm Pad Ht (MPN 10.01.06.03489). Key specifications — attr1019194: 10.01.06.03489; attr1019196: SCHMALZ; attr1019197: 65 A.
Brand: Schmalz

The SCHMALZ Vacuum Pad Assembly: 1.5 Folds is a bellows type vacuum pad assembly designed for packaging industry applications. This model features an M5 connection, 11.3 mm pad diameter, Elastodur ED material in green, and 17.1 mm pad height. The assembly carries the manufacturer part number 10.01.06.03489 and is rated 65 A.

View Product & Quote

Technical Specifications

Parameter	Value
Type	M5, Elastodur ED, Green
Pad Ht	17.1 mm
Pad Dia	11.3 mm
Manufacturer Part Number	10.01.06.03489
