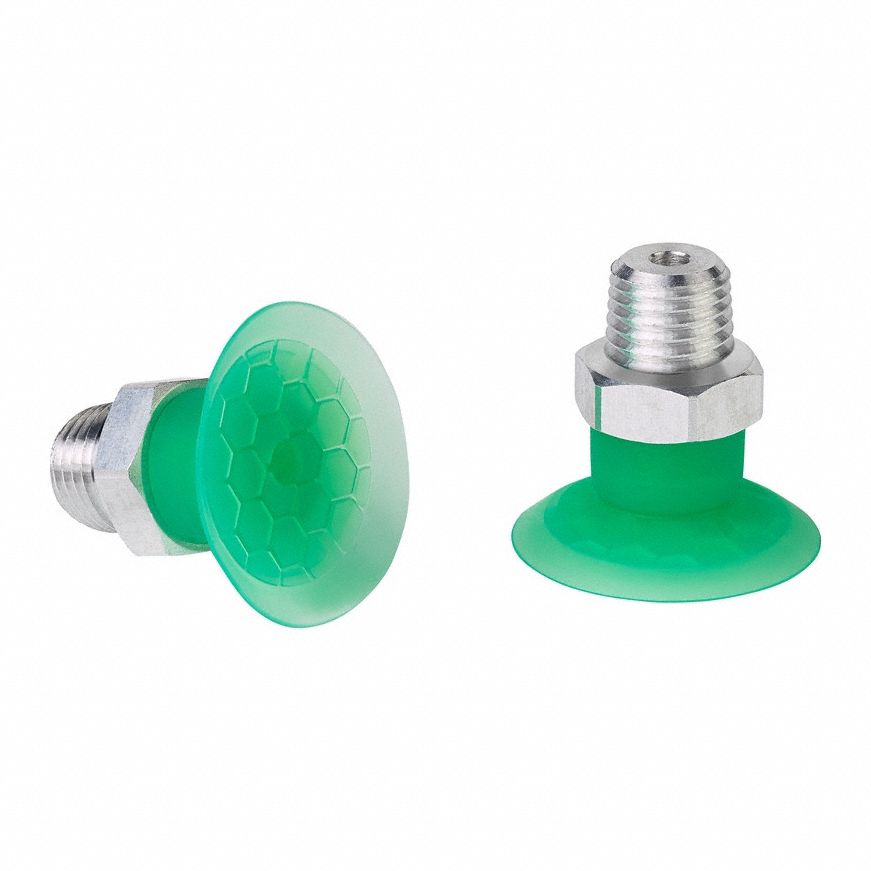

Schmalz 3G-OTH-160101 — Technical Specifications

Name: Schmalz 3G-OTH-160101 SCHMALZ Vacuum Pad Assembly: Flat, 1/8 in NPT Vacuum Port, 31.5 mm Pad Dia, Green, 19.5 mm Pad Ht (MPN 10.01.01.14986). Key specifications — attr1019136: 10.01.01.14986; attr1019138: SCHMALZ; attr1019139: 55 A.
Brand: Schmalz

The SCHMALZ Vacuum Pad Assembly is a flat-type, food-safe film and paper vacuum pad assembly (SKU 814HG9, MPN 10.01.01.14986). It features a 1/8 in NPT vacuum port, a 31.5 mm pad diameter, a green pad, and a 19.5 mm pad height. The assembly carries the specification 55 A.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Green
Pad Ht	19.5 mm
Pad Dia	31.5 mm
NPT Vacuum Port	1/8 in
Manufacturer Part Number	10.01.01.14986
