Schmalz 3G-OTH-160097 — Technical Specifications

Name: Schmalz 3G-OTH-160097 SCHMALZ Vacuum Pad Assembly: Flat, 1/8 in NPT Vacuum Port, 26.5 mm Pad Dia, Green, 19.2 mm Pad Ht (MPN 10.01.01.14974). Key specifications — attr1019136: 10.01.01.14974; attr1019138: SCHMALZ; attr1019139: 55 A.
Brand: Schmalz

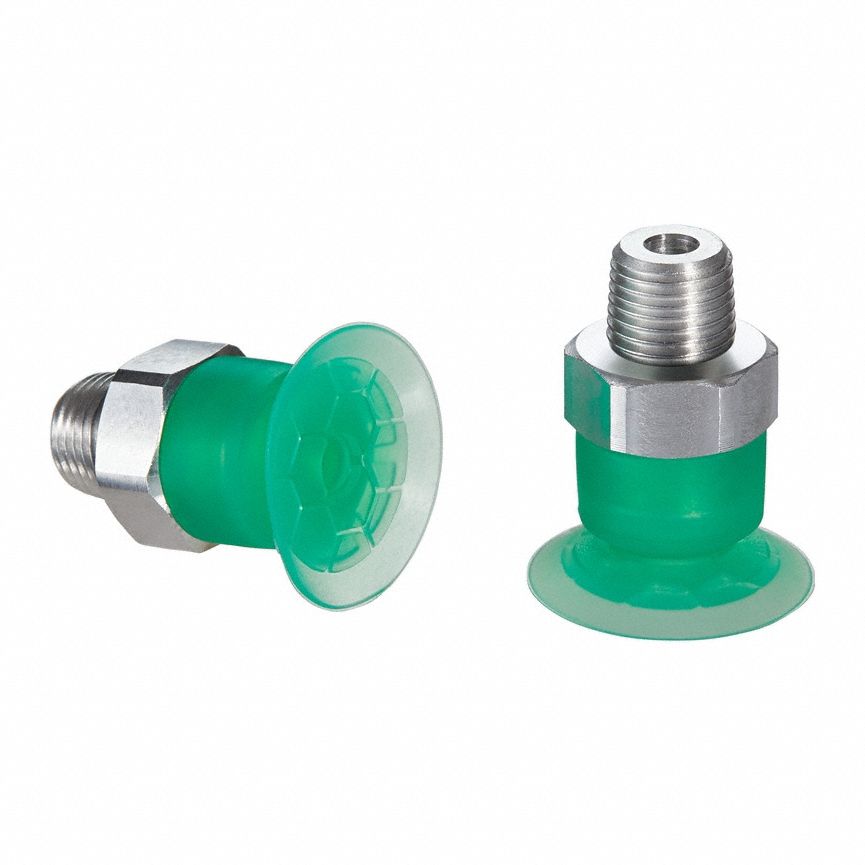

The SCHMALZ Vacuum Pad Assembly: Flat is a flat type food-safe film and paper vacuum pad assembly (SKU 814HG4, MPN 10.01.01.14974). It features a 1/8 in NPT vacuum port, 26.5 mm pad diameter, green color, and 19.2 mm pad height. The assembly is rated 55 A.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Green
Pad Ht	19.2 mm
Pad Dia	26.5 mm
NPT Vacuum Port	1/8 in
Manufacturer Part Number	10.01.01.14974
