Schmalz 3G-OTH-171601 — Technical Specifications

Name: Schmalz 3G-OTH-171601 SCHMALZ Vacuum Pad Assembly: Flat Oval, 3/8 in NPT, 60 mm_120 mm Pad Dia, NBR, Blue, 45 A, SAOF (MPN 10.01.05.00761). Key specifications — attr1019101: 10.01.05.00761; attr1019103: SCHMALZ; attr1019107: 45 A.
Brand: Schmalz

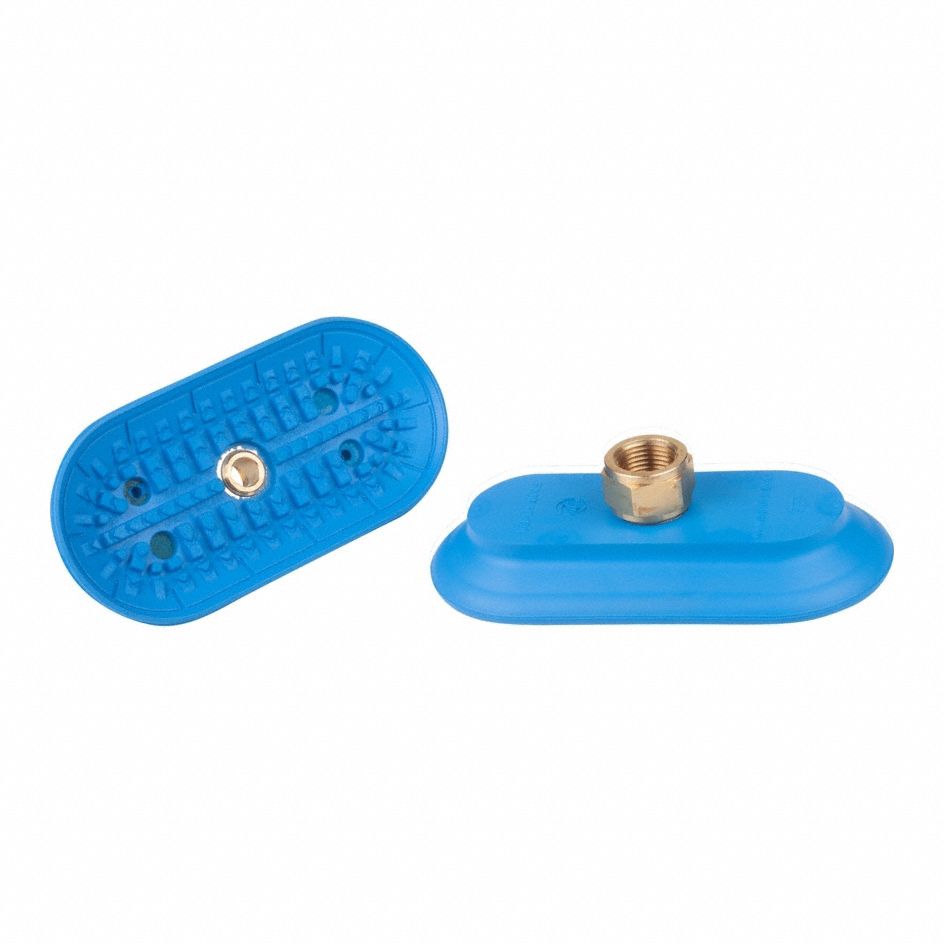

The SCHMALZ Vacuum Pad Assembly is a flat oval type vacuum pad assembly designed for automotive industry applications. This model (MPN 10.01.05.00761) features a 3/8 in NPT connection, 60 mm x 120 mm pad diameter, NBR material in blue, and a 45 A rating. It is part of the SAOF series from SCHMALZ.

View Product & Quote

Technical Specifications

Parameter	Value
NPT	3/8 in
Type	60 mm_120 mm Pad Dia, NBR, Blue, 45 A, SAOF
Manufacturer Part Number	10.01.05.00761
