Schmalz 3G-OTH-158388 — Technical Specifications

Name: Schmalz 3G-OTH-158388 SCHMALZ Vacuum Pad Assembly: 2.5 Folds, M5, 15.5 mm Pad Dia, NBR, 55 A, Black, 27.8 mm Pad Ht (MPN 10.01.06.00025). Key specifications — attr1019168: 55 A; attr1019165: 10.01.06.00025; attr1019167: SCHMALZ; attr1019180: Black.
Brand: Schmalz

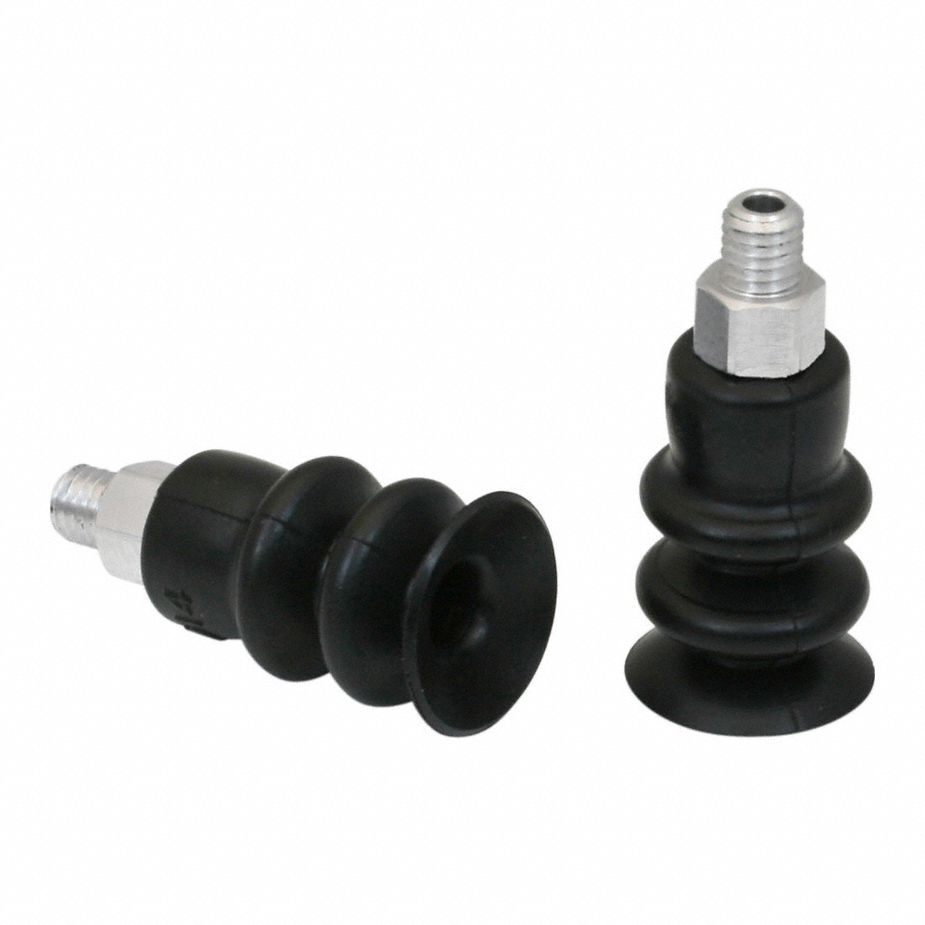

The SCHMALZ Vacuum Pad Assembly: 2.5 Folds is a multi-bellows type electronics industry vacuum pad assembly (SKU 814H28, MPN 10.01.06.00025). It features an M5 connection, 15.5 mm pad diameter, NBR material, 55 A durometer, black color, and 27.8 mm pad height.

View Product & Quote

Technical Specifications

Parameter	Value
Type	M5, NBR, 55 A, Black
Pad Ht	27.8 mm
Pad Dia	15.5 mm
Manufacturer Part Number	10.01.06.00025
