Rheem-ruud 3G-OTH-452255 — Technical Specifications

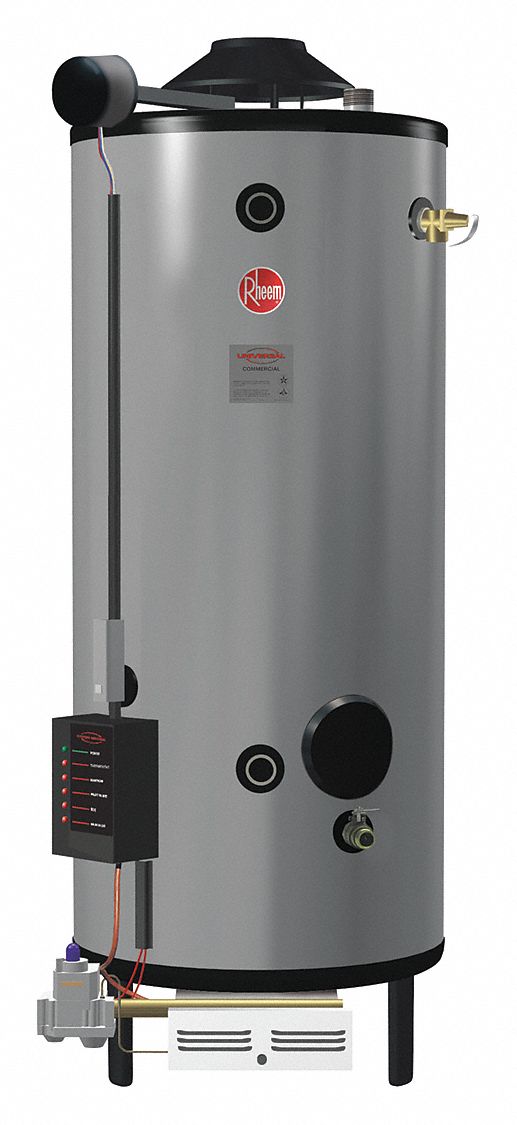

The RHEEM-RUUD Commercial Gas Water Heater (SKU 5AU63, MPN G100-200) is a UL Listed, 100-gallon nominal capacity natural gas water heater with a 199,900 BTU input. It features a direct spark to pilot ignition, standard vent type, and operates on 120V AC. The unit includes a temperature and pressure relief valve, with a recovery rate of 149 gph at 130°F and a maximum recovery flow rate of 485 gph at 40°F.
Technical Specifications
| Parameter | Value |
|---|---|
| Ht | 73.06 in |
| BTU | 199,900 |
| Type | 100 gal |
| Brand | RHEEM-RUUD |
| Market | Commercial |
| Low NOx | No |
| Fuel Type | Natural Gas |
| Standards | UL Listed |
| Vent Type | Standard |
| Ignition Type | Direct Spark to Pilot |
| Included Valves | Temperature and Pressure Relief |
| Display Sell UOM | EA |
| Low NOx Compliant | Includes Standard Burner |
| Operating Voltage | 120V AC |
| Included Valve Type | T & P Relief |
| Recovery Rate @ Rise | 149 gph @ 130°F |
| Vent Connection Size | 6 in |
| Nominal Tank Capacity | 100 gal |
| Manufacturer Part Number | G100-200 |
| Water Connection Location | Front |
| Maximum Recovery Flow Rate | 485 gph @ 40°F |
