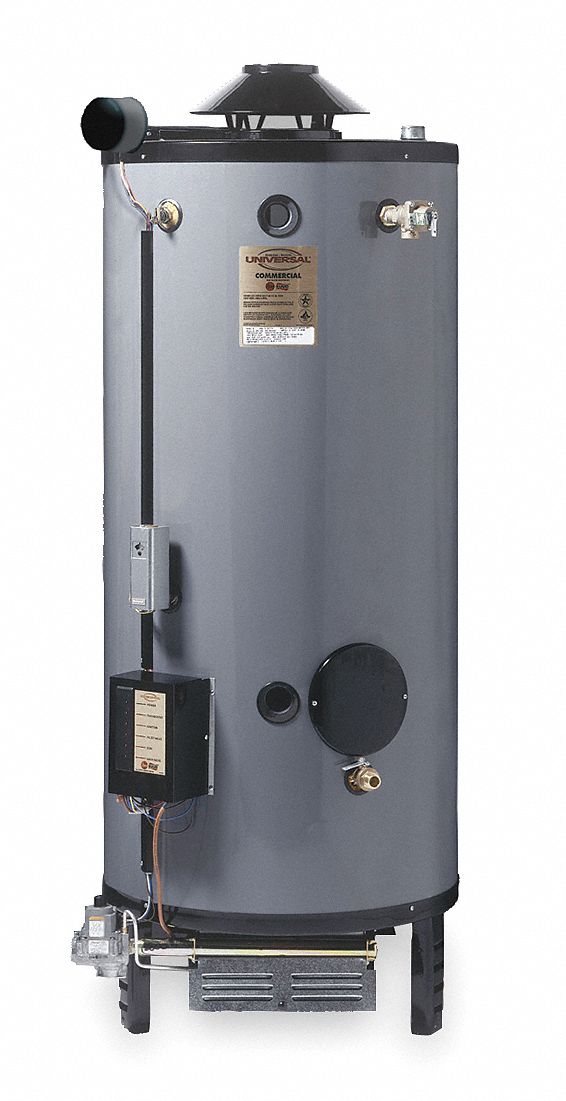

Rheem-ruud 3G-OTH-452252 — Technical Specifications
The RHEEM-RUUD Commercial Gas Water Heater is a general-purpose liquid propane unit with a 100-gallon nominal tank capacity and a 199,900 BTU input. It features a direct spark to pilot ignition, standard vent type, and operates on 120V AC. The water heater includes a temperature and pressure relief valve, has a recovery rate of 138 gph @ 140°F, and a maximum recovery flow rate of 485 gph @ 40°F. It is Canada CSA certified and has a 6-inch vent connection size.
Technical Specifications
| Parameter | Value |
|---|---|
| Ht | 73.06 in |
| BTU | 199,900 |
| Type | 100 gal |
| Brand | RHEEM-RUUD |
| Market | Commercial |
| Low NOx | No |
| Fuel Type | Liquid Propane |
| Standards | Canada CSA |
| Vent Type | Standard |
| Ignition Type | Direct Spark to Pilot |
| Included Valves | Temperature and Pressure Relief |
| Display Sell UOM | EA |
| Low NOx Compliant | Includes Standard Burner |
| Operating Voltage | 120V AC |
| Included Valve Type | T & P Relief |
| Recovery Rate @ Rise | 138 gph @ 140°F |
| Vent Connection Size | 6 in |
| Nominal Tank Capacity | 100 gal |
| Manufacturer Part Number | G100-200LP / 397696 |
| Water Connection Location | Rear |
| Maximum Recovery Flow Rate | 485 gph @ 40°F |
