Rheem 3G-OTH-449586 — Technical Specifications

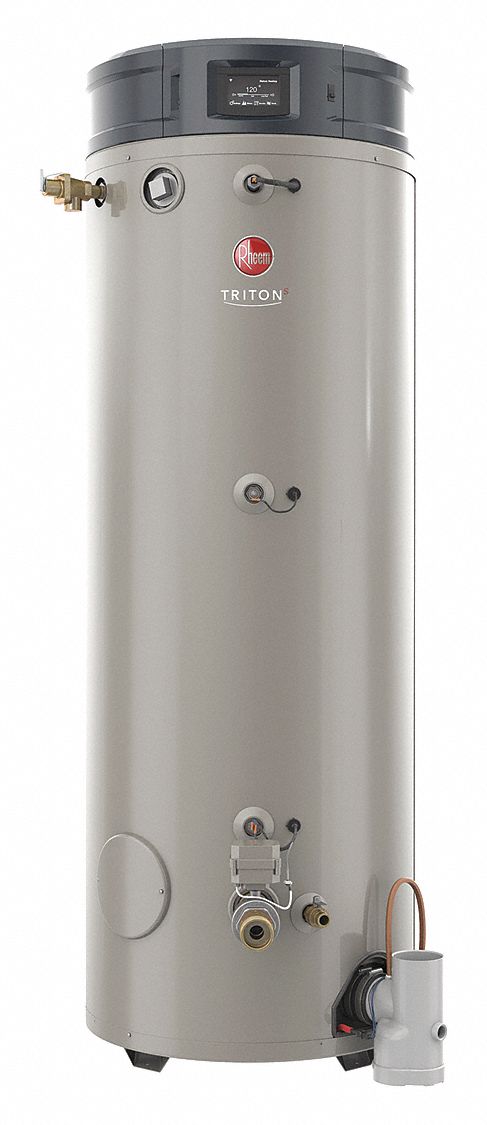

The RHEEM Triton SS GHE100SS-160 is a 100-gallon commercial condensing gas water heater, UL Listed and Low NOx compliant with a California Low NOx Compliant Burner. It operates on natural gas with a 160,000 BTU input, direct spark to pilot ignition, and a recovery rate of 134 gph @ 140°F (maximum 470 gph @ 40°F). This powered-vent unit features a 2-inch vent connection, side water connections, a drain valve, and requires 110V AC power.
Technical Specifications
| Parameter | Value |
|---|---|
| Ht | 77.5 in |
| BTU | 160,000 |
| Type | Low NOx, 100 gal |
| Brand | RHEEM |
| Market | Commercial |
| Low NOx | Yes |
| Fuel Type | Natural Gas |
| Standards | UL Listed |
| Sub-Brand | Triton SS |
| Condensing | Yes |
| Ignition Type | Direct Spark to Pilot |
| Included Valves | Drain |
| Display Sell UOM | EA |
| Low NOx Compliant | Includes California Low NOx Compliant Burner |
| Operating Voltage | 110V AC |
| Included Valve Type | Drain |
| Recovery Rate @ Rise | 134 gph @ 140°F |
| Vent Connection Size | 2 in |
| Nominal Tank Capacity | 100 gal |
| Manufacturer Part Number | GHE100SS-160 |
| Water Connection Location | Side |
| Maximum Recovery Flow Rate | 470 gph @ 40°F |
