Rheem 3G-OTH-449583 — Technical Specifications

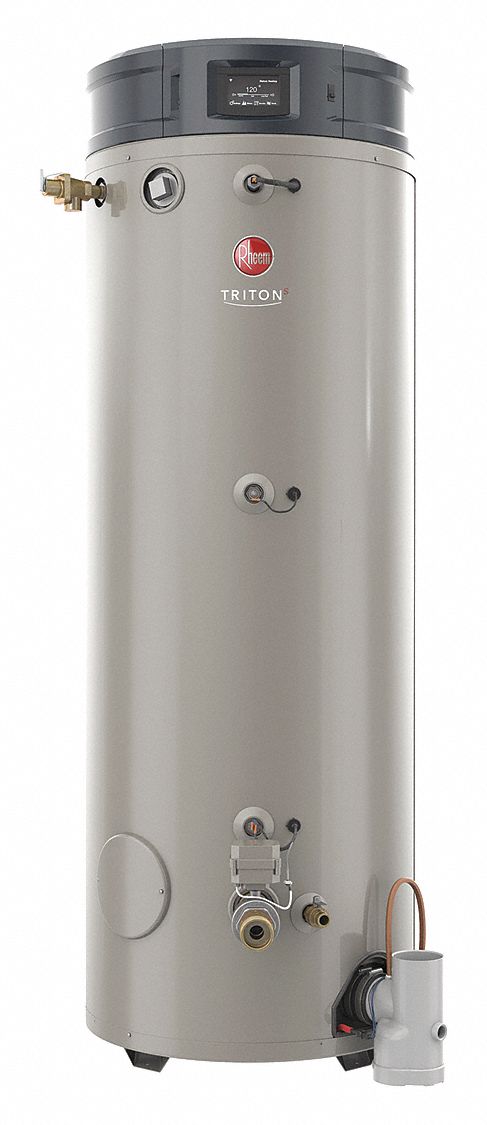

The RHEEM Commercial Gas Water Heater (SKU 455C77, MPN GHE80SS-200) is a powered-vent, condensing commercial gas water heater from the Triton SS sub-brand. It operates on natural gas with a 110V AC supply, features a direct spark to pilot ignition, and includes a low NOx compliant burner. The unit has an 80-gallon nominal tank capacity, a 2-inch vent connection, and a recovery rate of 255 gph at 90°F rise, with a maximum recovery flow rate of 576 gph at 40°F rise. It meets Canada CSA standards and includes a temperature and pressure relief valve with auto shutoff.
Technical Specifications
| Parameter | Value |
|---|---|
| Ht | 70.06 in |
| BTU | 199,900 |
| Type | Low NOx, 80 gal |
| Brand | RHEEM |
| Market | Commercial |
| Low NOx | Yes |
| Fuel Type | Natural Gas |
| Standards | Canada CSA |
| Sub-Brand | Triton SS |
| Condensing | Yes |
| Ignition Type | Direct Spark to Pilot |
| Included Valves | Temperature and Pressure Relief |
| Display Sell UOM | EA |
| Low NOx Compliant | Includes California Low NOx Compliant Burner |
| Operating Voltage | 110V AC |
| Included Valve Type | Auto Shutoff |
| Recovery Rate @ Rise | 255 gph @ 90°F |
| Vent Connection Size | 2 in |
| Nominal Tank Capacity | 80 gal |
| Manufacturer Part Number | GHE80SS-200 |
| Water Connection Location | Side |
| Maximum Recovery Flow Rate | 576 gph @ 40°F |
