Rheem 3G-OTH-449578 — Technical Specifications

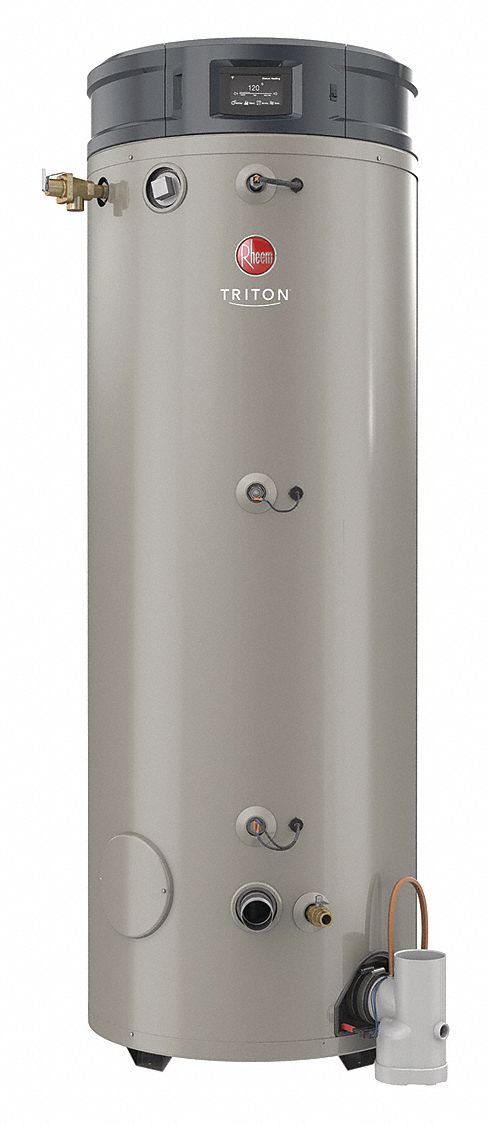

The RHEEM Commercial Gas Water Heater (MPN GHE100SU-200) is a powered-vent, condensing Triton sub-brand unit fueled by natural gas. It features a 100-gallon nominal tank capacity, 199,900 BTU, and a 77.5-inch height, with a recovery rate of 332 gph @ 70°F and maximum recovery flow rate of 582 gph @ 40°F. This Low NOx compliant model includes a California Low NOx Compliant Burner, direct spark to pilot ignition, and operates on 110V AC, meeting NSF standards.
Technical Specifications
| Parameter | Value |
|---|---|
| Ht | 77.5 in |
| BTU | 199,900 |
| Type | Low NOx, 100 gal |
| Brand | RHEEM |
| Market | Commercial |
| Low NOx | Yes |
| Fuel Type | Natural Gas |
| Standards | NSF |
| Sub-Brand | Triton |
| Condensing | Yes |
| Ignition Type | Direct Spark to Pilot |
| Included Valves | Temperature and Pressure Relief |
| Display Sell UOM | EA |
| Low NOx Compliant | Includes California Low NOx Compliant Burner |
| Operating Voltage | 110V AC |
| Included Valve Type | Drain |
| Recovery Rate @ Rise | 332 gph @ 70°F |
| Vent Connection Size | 2 in |
| Nominal Tank Capacity | 100 gal |
| Manufacturer Part Number | GHE100SU-200 |
| Water Connection Location | Side |
| Maximum Recovery Flow Rate | 582 gph @ 40°F |
