Rheem 3G-OTH-449575 — Technical Specifications

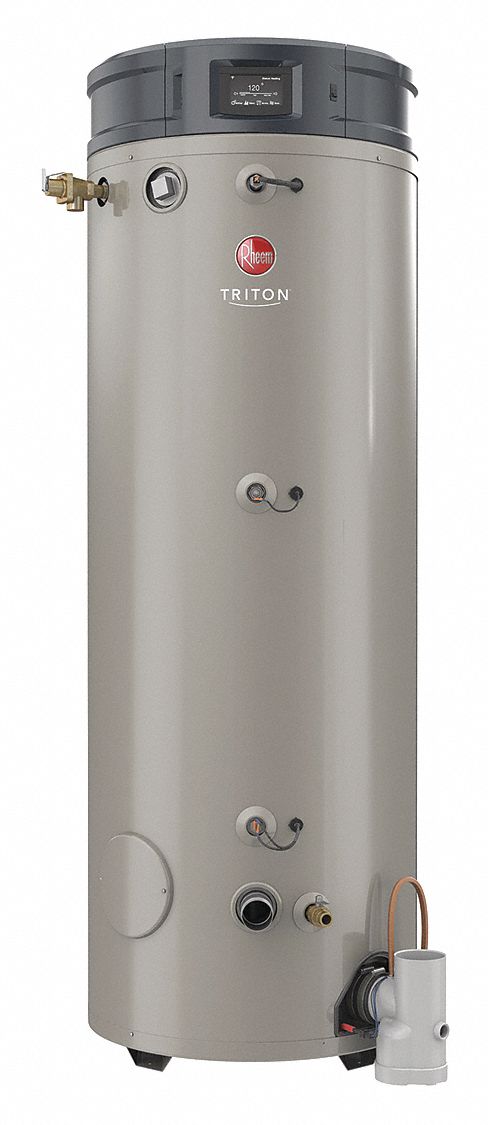

The RHEEM Triton Commercial Gas Water Heater (MPN GHE80SU-200) is a powered-vent, condensing natural gas water heater with a nominal tank capacity of 80 gallons. It features a direct spark to pilot ignition, a Low NOx compliant burner, and operates at 110V AC. The unit includes a temperature and pressure relief valve and a drain valve, with a vent connection size of 2 inches and a recovery rate of 229 gph @ 100°F.
Technical Specifications
| Parameter | Value |
|---|---|
| Ht | 70.06 in |
| BTU | 199,900 |
| Type | Low NOx, 80 gal |
| Brand | RHEEM |
| Market | Commercial |
| Low NOx | Yes |
| Fuel Type | Natural Gas |
| Standards | NSF |
| Sub-Brand | Triton |
| Condensing | Yes |
| Ignition Type | Direct Spark to Pilot |
| Included Valves | Temperature and Pressure Relief |
| Display Sell UOM | EA |
| Low NOx Compliant | Includes California Low NOx Compliant Burner |
| Operating Voltage | 110V AC |
| Included Valve Type | Drain |
| Recovery Rate @ Rise | 229 gph @ 100°F |
| Vent Connection Size | 2 in |
| Nominal Tank Capacity | 80 gal |
| Manufacturer Part Number | GHE80SU-200 |
| Water Connection Location | Side |
| Maximum Recovery Flow Rate | 576 gph @ 40°F |
