Reotemp 3G-OTH-175013 — Technical Specifications

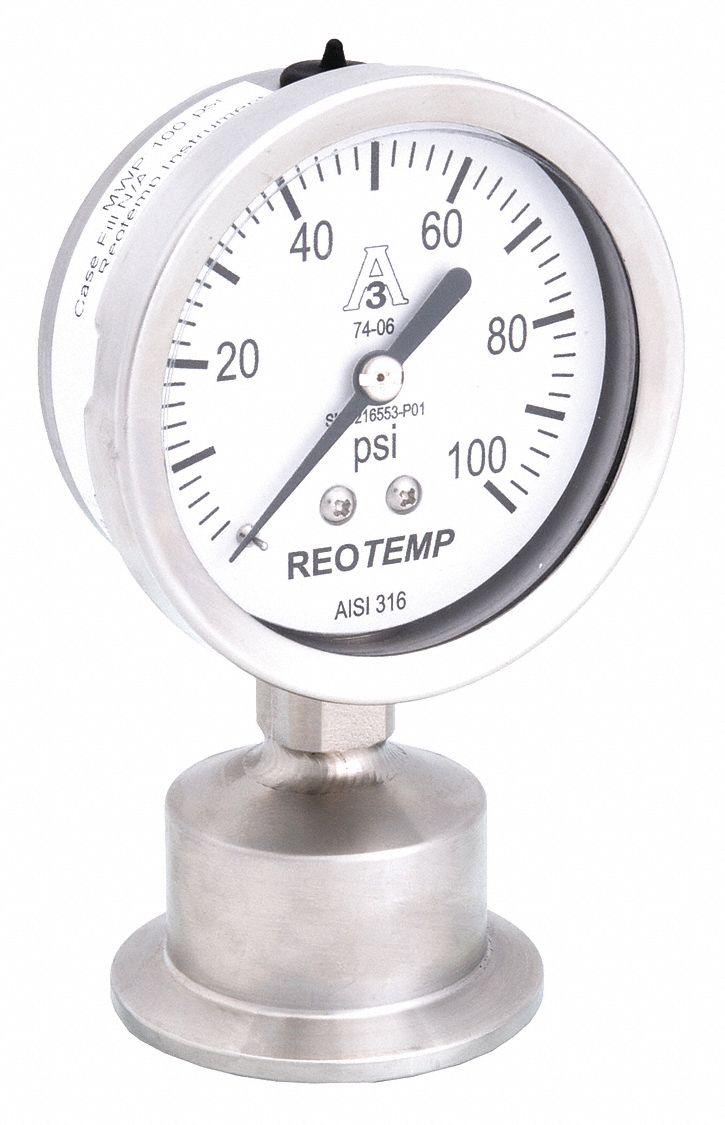

The REOTEMP SG Series Sanitary Pressure Gauge is a dial-type 3-A Certified gauge with a 0 psi to 100 psi range and ±1.50% accuracy. It features a 304 Stainless Steel case, Plastic lens, and Stainless Steel wetted parts, with a NEMA 4X enclosure rating for corrosion resistance. This bottom-connected gauge includes a 2 1/2 in dial and 1 1/2 in Tri-Clamp fitting (MPN SG25ATC15P18).
Technical Specifications
| Parameter | Value |
|---|---|
| Dial | 2 1/2 in |
| Type | Bottom, ±1.50% Accuracy |
| Brand | REOTEMP |
| Series | SG |
| Accuracy | ±1.50% |
| Tri-Clamp | 1 1/2 in |
| Case Material | 304 Stainless Steel |
| Lens Material | Plastic |
| Pressure Range | 0 psi to 100 psi |
| Gauge Wetted Parts | Stainless Steel |
| Pressure Gauge Type | Sanitary Pressure Gauge |
| Vibration Resistance | Corrosion Resistant |
| NEMA Enclosure Rating | 4X |
| Manufacturer Part Number | SG25ATC15P18 |
| Certificate Of Calibration | Not Included |
| Includes Calibration Certificate | No |
