Reelcraft 3G-OTH-457171 — Technical Specifications

Name: Reelcraft 3G-OTH-457171 Spring Return Hose Reel: 25 ft (3/8 in I.D.), 1/4 in MNPT, 300 psi Max Op Pressure, Brass, Red (MPN 4625 OLP). Key specifications — Reel Color: Red; Hose Capacity: 25 ft (3/8 in I.D.); Overall Dimensions: 12-5/8 in L x 5-5/8 in W x 12-7/8 in H; Swivel Material: Brass; Hose End Configuration: 1/4 in MNPT; Brand: REELCRAFT.
Brand: Reelcraft

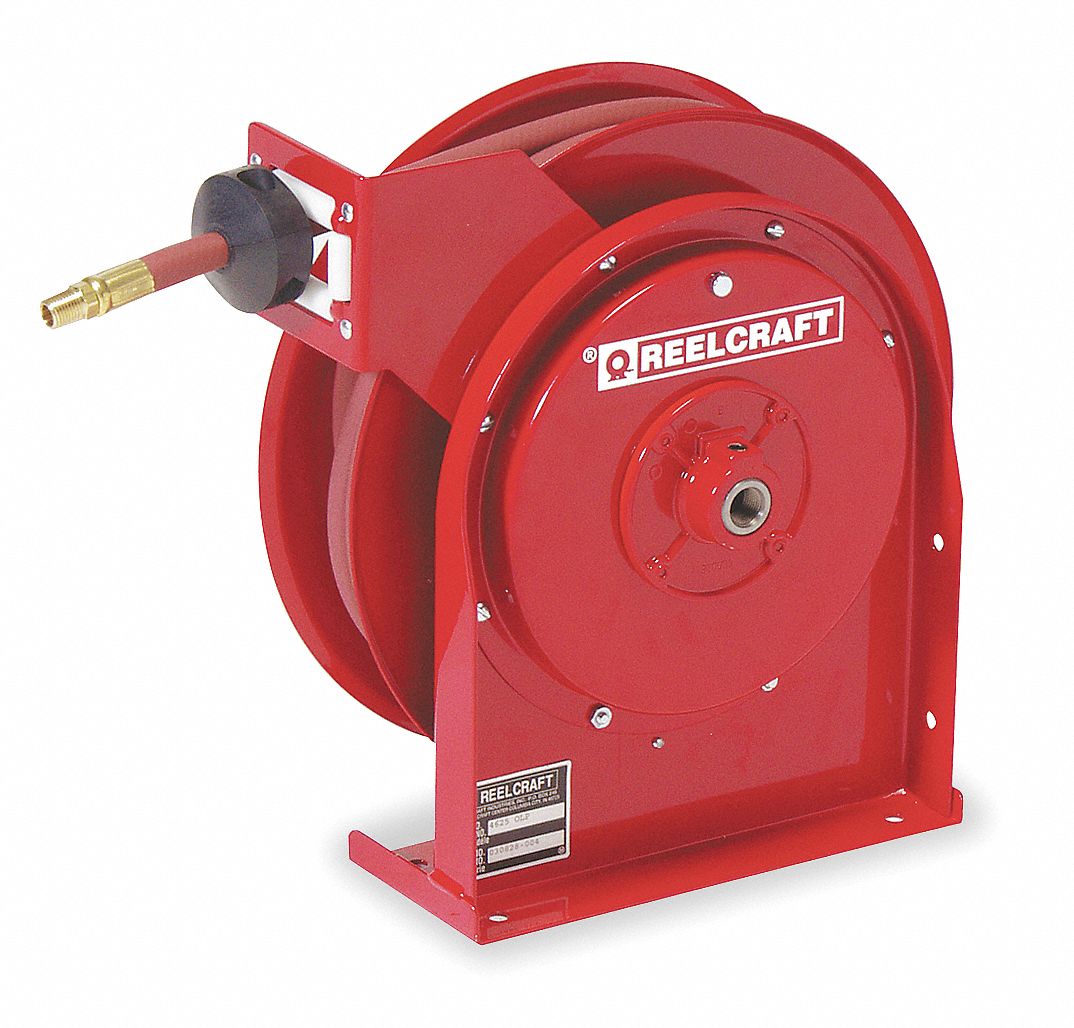

The REELCRAFT 4625 OLP is a compact air or water spring-return hose reel with a 25 ft (3/8 in I.D.) hose capacity, 1/4 in MNPT hose end configuration, and a maximum operating pressure of 300 psi. It features a brass swivel and red reel, with overall dimensions of 12-5/8 in L x 5-5/8 in W x 12-7/8 in H.

View Product & Quote

Technical Specifications

Parameter	Value
MNPT	1/4 in
Type	Brass, Red
Brand	REELCRAFT
Reel Color	Red
Hose Capacity	25 ft (3/8 in I.D.)
Max Op Pressure	300 psi
Swivel Material	Brass
Overall Dimensions	12-5/8 in L x 5-5/8 in W x 12-7/8 in H
Hose End Configuration	1/4 in MNPT
Manufacturer Part Number	4625 OLP
