Reed Instruments 3G-OTH-178611 — Technical Specifications

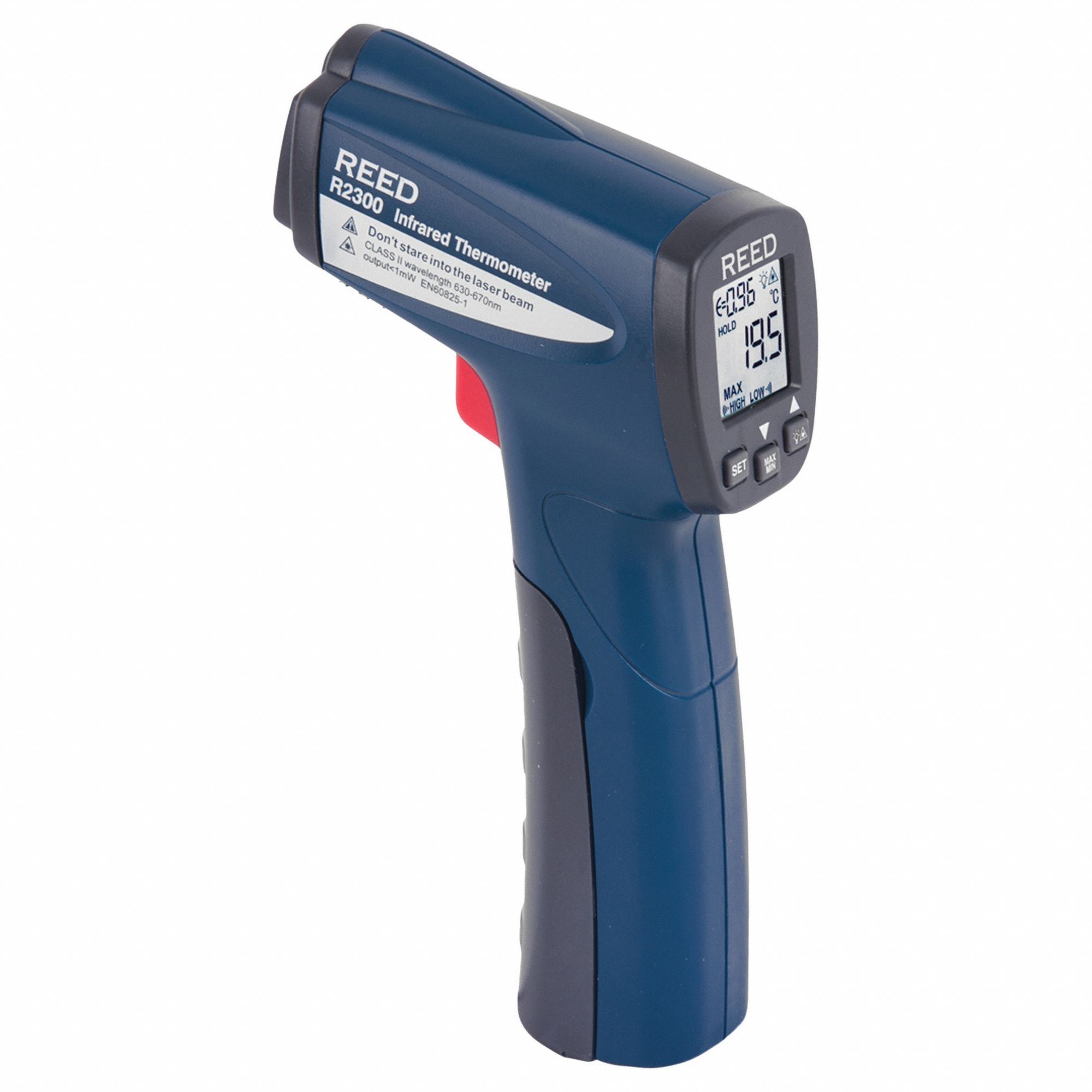

The REED INSTRUMENTS R2300-NIST is a full-size, handheld standard infrared thermometer with a built-in laser pointer to identify the target area. It measures temperatures from -26°F up to 1202°F with an accuracy of +/-4°F or +/-2% of reading and a resolution of 0.1°F. The device features an LCD with backlight, adjustable emissivity from 0.10 to 1.00, maximum temperature testing, low temperature alerts, and includes a NIST calibration certificate.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Included, Max Temp/Min Temp, Adj @ 0.10 to 1.00 |
| Brand | REED INSTRUMENTS |
| Features | Built-in Laser Pointer Identifies Target Area |
| Standards | Class II Laser |
| Alert Type | Light |
| Accuracy °F | +/-4° or +/-2% of Reading |
| Resolution °F | 0.1°F |
| Max. Emissivity | 1.00 |
| Min. Emissivity | 0.10 |
| Body Style - NEW | Full Size |
| Testing Functions | Maximum Temperature |
| Temperature Alerts | Low Temperature |
| Mounting Style - NEW | Handheld Only |
| Intrinsic Safety - NEW | Not Specified Intrinsically Safe |
| Manufacturer Part Number | R2300-NIST |
| Includes Work Light - NEW | No Work Light Included |
| Max. Temperature Measured | Up to 1202° F |
| Min. Temperature Measured | -26° |
| Digital Display Screen Type | LCD with Backlight |
| Calibration Certificate Type | NIST |
