Red Lion 3G-OTH-28289 — Technical Specifications

Name: Red Lion 3G-OTH-28289 RED LION AC Voltage Monitor: 115 V AC – 600 V AC, 0.56 in Digit Ht - Max., 1/8 Cutout DIN Size, PAX (MPN PAXLHV00). Key specifications — Manufacturer Part Number: PAXLHV00; Accuracy: +/-0.1%; Digital Display Screen Color: Red; Digital Display Screen Type: LED; Includes: Panel Gasket; NEMA Enclosure Rating: 4X; Product Type: AC Voltage Monitor; Series: PAX.
Brand: Red Lion

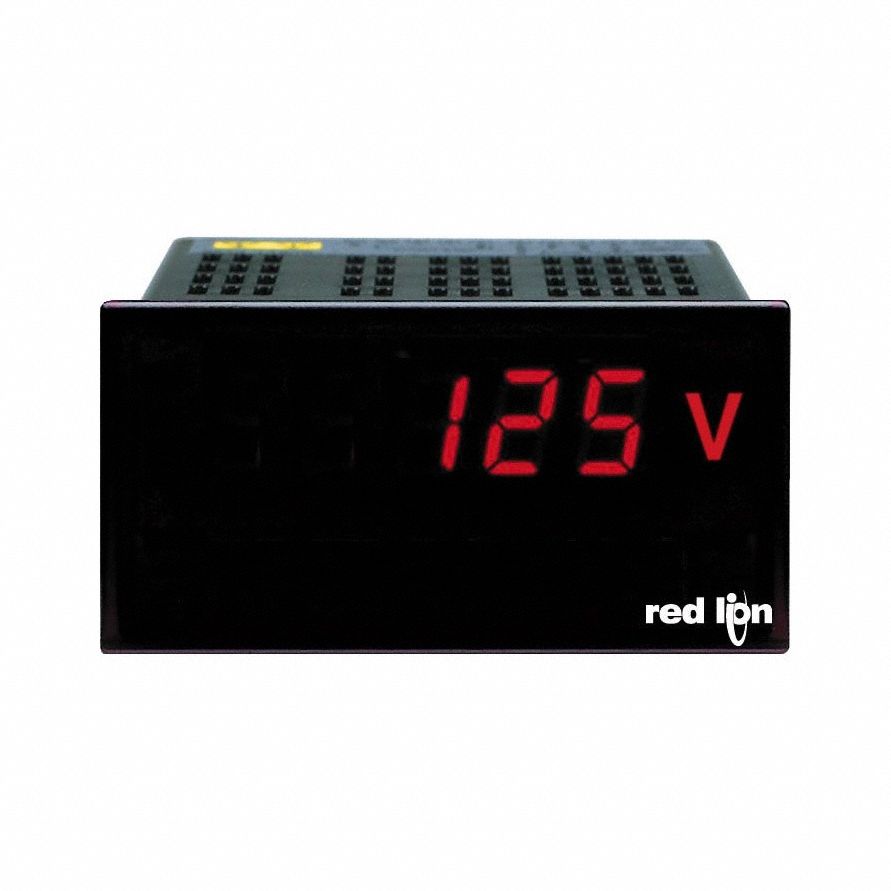

The RED LION PAXLHV00 is an AC Voltage Monitor from the PAX series, designed as a digital panel meter for AC voltage monitoring across 115 V AC to 600 V AC. It features a red LED display with 0.56-inch digit height, +/-0.1% accuracy, and a NEMA 4X-rated enclosure with a panel gasket. The unit uses compression-type terminal connections and fits a 1/8 DIN cutout.

View Product & Quote

Technical Specifications

Parameter	Value
Type	0.56 in Digit Ht - Max., PAX
Brand	RED LION
Series	PAX
Accuracy	+/-0.1%
Includes	Panel Gasket
Input Type	AC Voltage
Product Type	AC Voltage Monitor
Cutout DIN Size	1/8
NEMA Enclosure Rating	4X
Manufacturer Part Number	PAXLHV00
Terminal Connection Type	Compression
Digital Display Screen Type	LED
Digital Display Screen Color	Red
