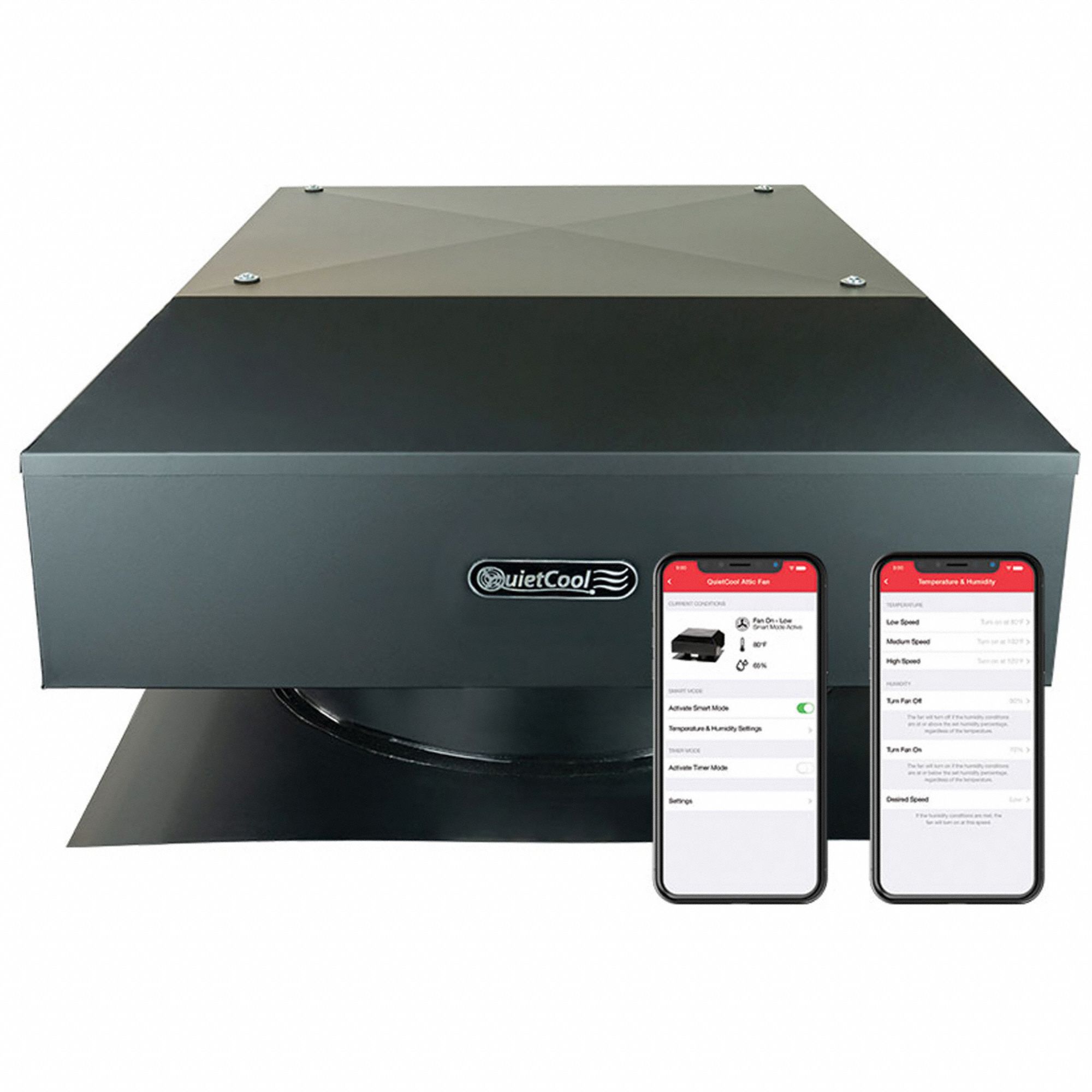

Quietcool 3G-OTH-77542 — Technical Specifications

Name: Quietcool 3G-OTH-77542 Attic Exhaust Fan: Roof Mount, Electric Motor, Max. 3,000 sq ft Attic, 2,116 cfm Max. (MPN AFR SMT ES-2.0). Key specifications — Includes: Accessory Bag; Includes Humidistat: No; Includes Shutter: No; Includes Thermostat: Yes; Mounting Location: Roof; Nameplate Voltage: 120V AC; High-Efficiency Motor: Yes; Brand: QUIETCOOL.
Brand: Quietcool

The QUIETCOOL AFR SMT ES-2.0 is a roof-mount attic exhaust fan with an electronically commutated motor, rated at 120V AC and 2.3/1.1/0.3 A. It delivers over 2,000 cfm exhaust airflow at 0.000 in SP, includes a thermostat and fire safety shutoff, and features a black powder coated steel dome. This model is designed for high-static-pressure applications and covers up to 3,000 sq ft of attic space.

View Product & Quote

Technical Specifications

Parameter	Value
Max	2,116 cfm
Type	Electric Motor, Max. 3,000 sq ft Attic
Brand	QUIETCOOL
Current	2.3/1.1/0.3 A
Features	Temperature Control, Fire Safety Shutoff
Includes	Accessory Bag
Motor Type	Electronically Commutated
Dome Material	Black Powder Coated Steel
Includes Shutter	No
Mounting Location	Roof
Nameplate Voltage	120V AC
Includes Humidistat	No
Includes Thermostat	Yes
Fire Safety Shut-Off	Yes
High-Efficiency Motor	Yes
Manufacturer Part Number	AFR SMT ES-2.0
Power Source/High-Efficiency Motors	High-Efficiency Motor
Exhaust Airflow @ 0.000 In SP - Range	More than 2,000 cfm
For High-Static Pressure Applications	Yes
