Pro1 Iaq 3G-OTH-71075 — Technical Specifications

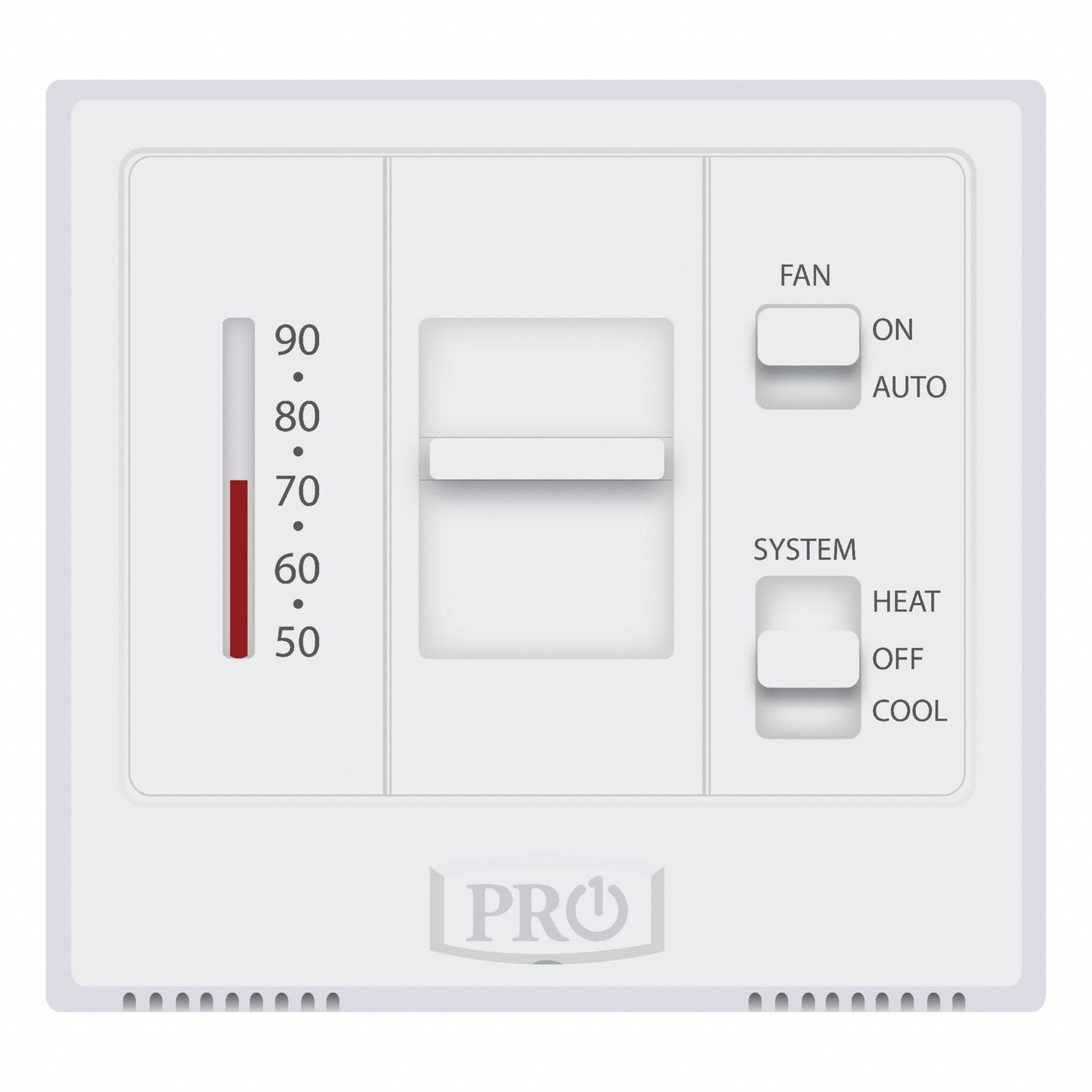

The PRO1 IAQ Low Voltage Thermostat (MPN T501M) is a square analog thermostat for heat and cool applications, operating on 24V AC. It features a manual changeover type with system settings of Cool-Heat-Off, an exposed dial control, and fan settings of Auto-On-Circulate. The thermostat has a temperature control range of 50° to 90°F with a 1˚F temperature differential, and includes terminal designations Y, B/G/O/RC/RH/W.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Manual, B/G/O/RC/RH/W/Terminal Designations, Square |
| Brand | PRO1 IAQ |
| Shape | Square |
| Voltage | 24V AC |
| Digit Size | Standard |
| Application | Heat and Cool |
| Control Type | Exposed Dial |
| Fan Settings | Auto-On-Circulate |
| Changeover Type | Manual |
| System Settings | Cool-Heat-Off |
| Mounting Direction | Vertical |
| Terminal Designations | Y |
| Manufacturer Part Number | T501M |
| Temperature Differential | 1˚F |
| Temperature Control Range | 50° to 90°F |
