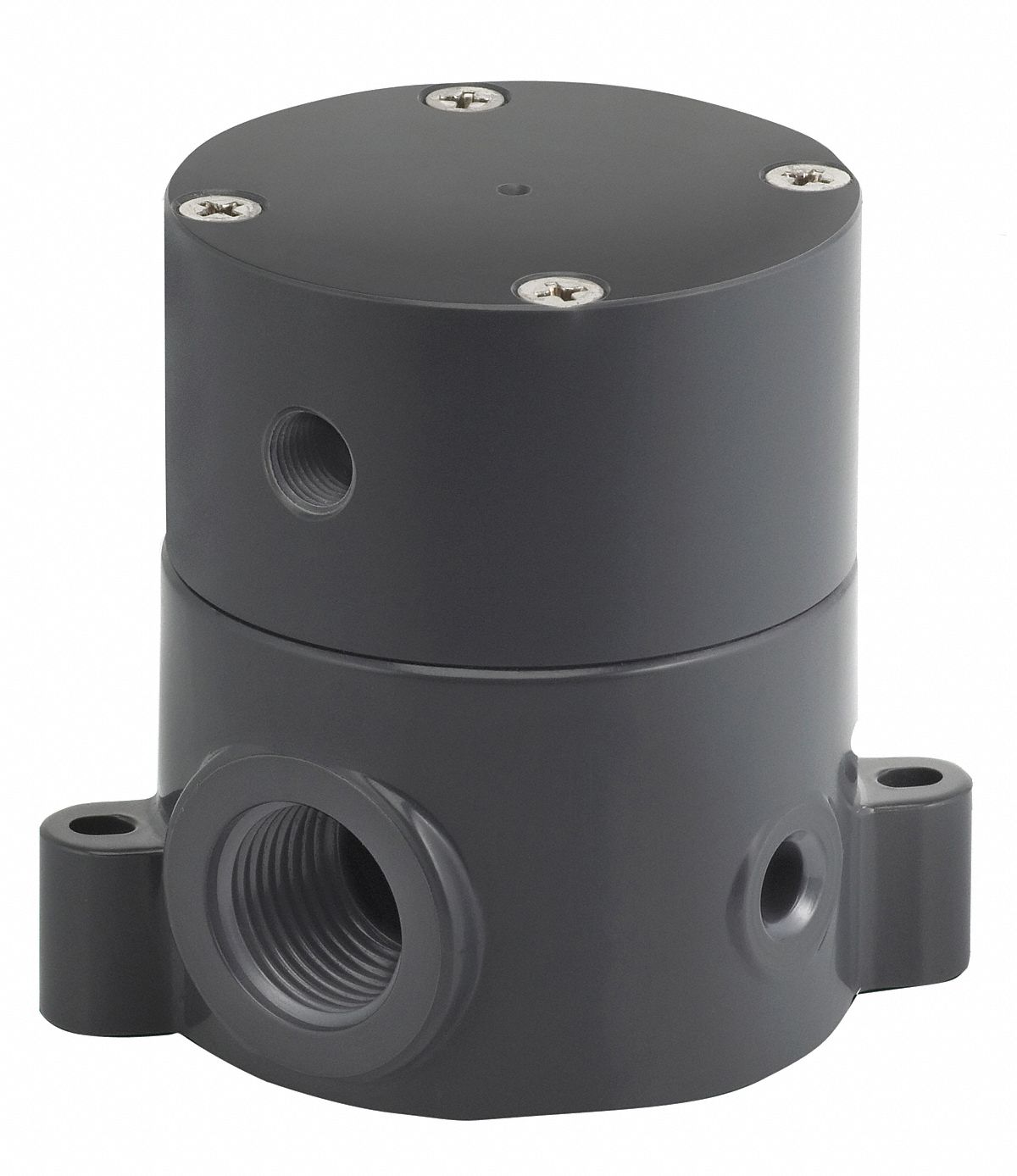

Plast-o-matic 3G-OTH-441382 — Technical Specifications
The PLAST-O-MATIC Pneumatically Actuated Diaphragm Valve (SKU 11K503) is a 3-way, plastic pneumatically-actuated diaphragm valve with a 1-inch, FNPT x FNPT connection. It features a single-acting spring return actuator with air-to-spring operation, a PTFE diaphragm, and a polypropylene body, designed for water media. The valve is identified by manufacturer part number BSDAM100T-NC-PP.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Polypropylene, 3-Way, FNPT x FNPT, PTFE |
| Brand | PLAST-O-MATIC |
| For Media | Water |
| Actuator Type | Single-Acting Spring Return |
| Connection Type | FNPT x FNPT |
| Actuator Operation | Air to Spring |
| Diaphragm Material | PTFE |
| Diaphragm Valve Type | 3-Way |
| Connection Type-Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Manufacturer Part Number | BSDAM100T-NC-PP |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
