Plast-o-matic 3G-OTH-441373 — Technical Specifications

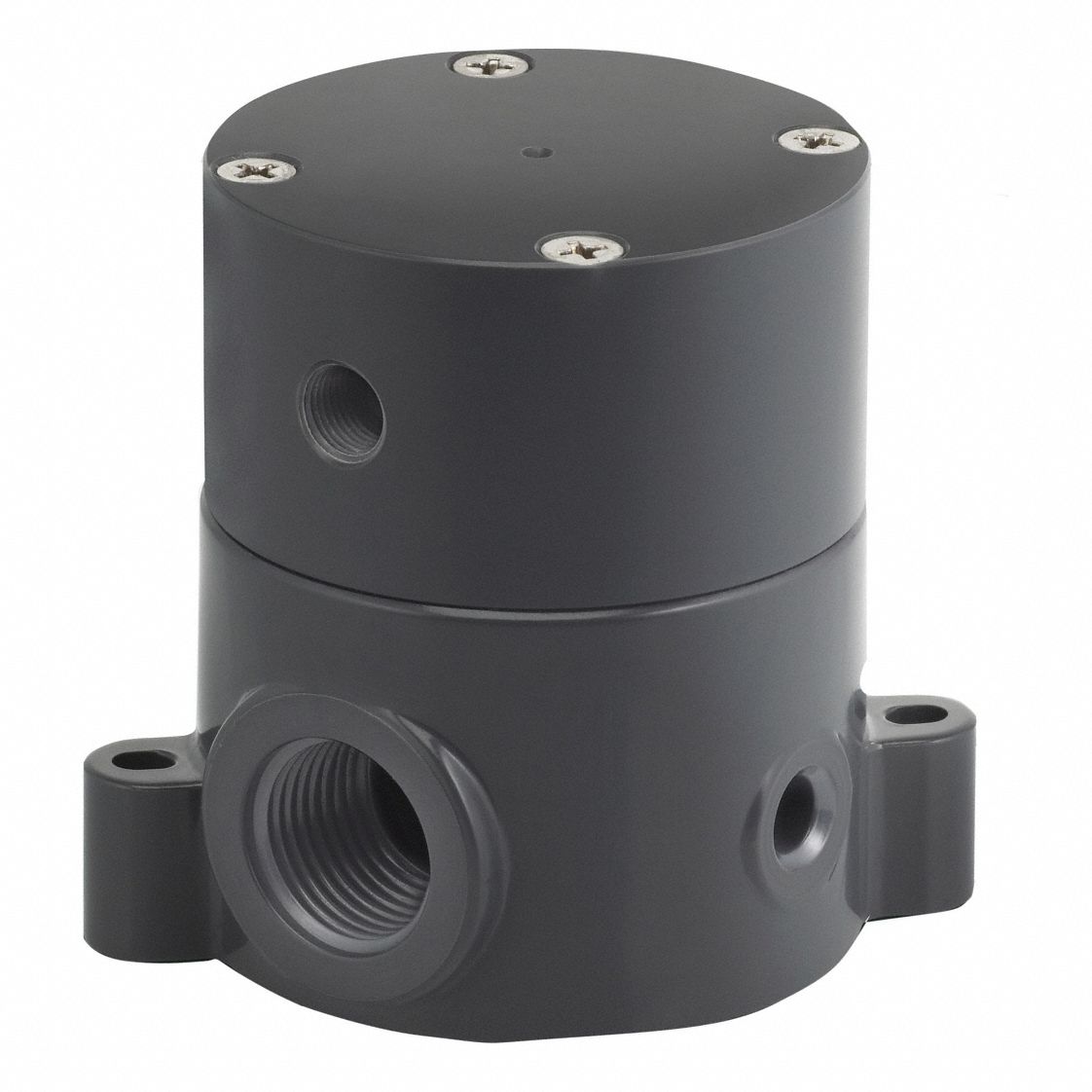

The PLAST-O-MATIC BSDA075T-NC-PV is a 3/4 in, 3-way plastic pneumatically-actuated diaphragm valve with a single-acting spring return actuator and PTFE diaphragm. Designed for corrosive chemicals, it features FNPT x FNPT connections and operates via air-to-spring actuation.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | PVC, 3-Way, FNPT x FNPT, PTFE |
| Brand | PLAST-O-MATIC |
| For Media | Corrosive Chemicals |
| Actuator Type | Single-Acting Spring Return |
| Connection Type | FNPT x FNPT |
| Actuator Operation | Air to Spring |
| Diaphragm Material | PTFE |
| Diaphragm Valve Type | 3-Way |
| Connection Type-Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Manufacturer Part Number | BSDA075T-NC-PV |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
