Plast-o-matic 3G-OTH-441379 — Technical Specifications

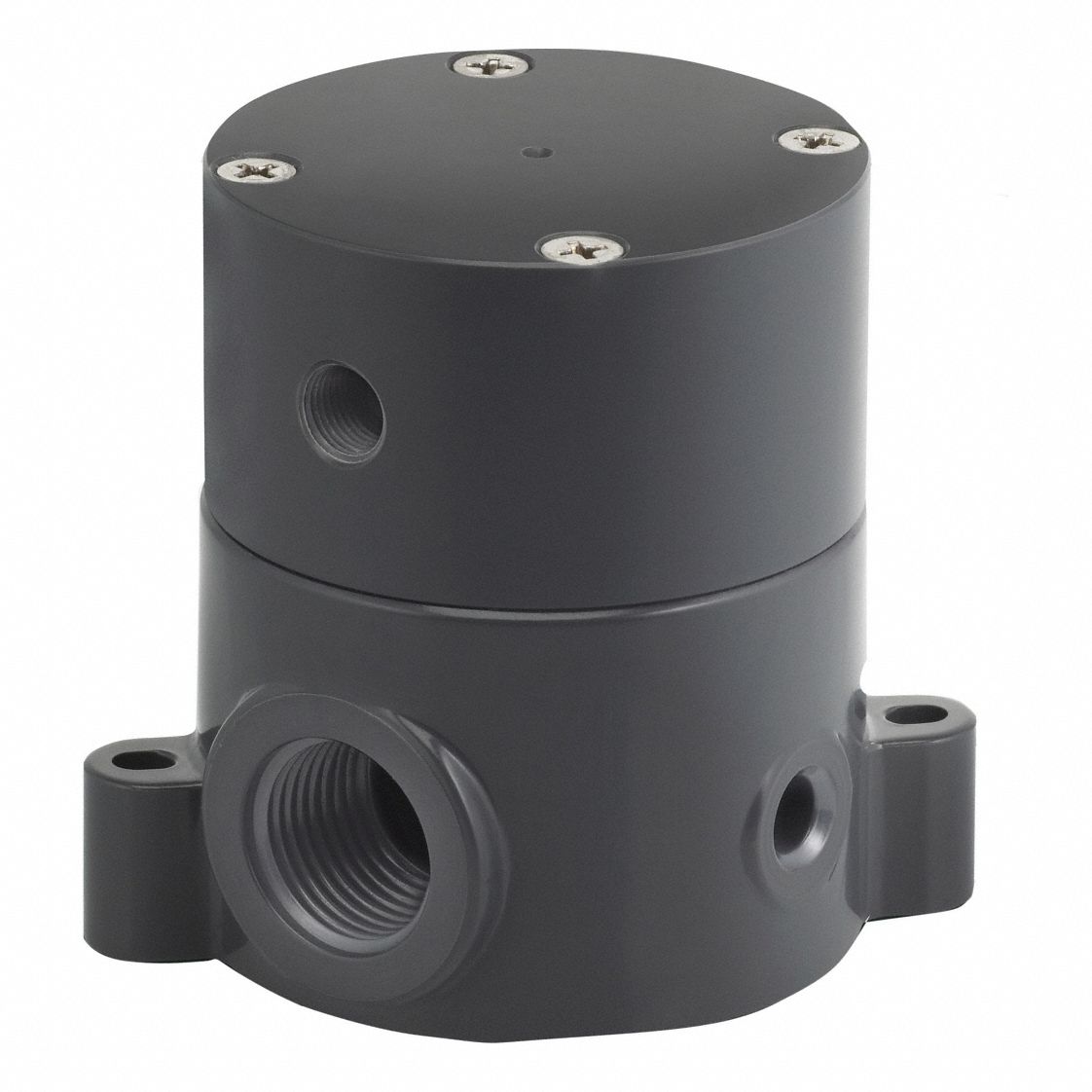

The PLAST-O-MATIC Pneumatically Actuated Diaphragm Valve (SKU 11K494, MPN BSDA025T-NC-PV) is a 3-way, plastic pneumatically-actuated diaphragm valve with a 1/4 in PVC body and FNPT x FNPT connections. It features a single-acting spring return actuator with air-to-spring operation, a PTFE diaphragm, and is designed for water media.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | PVC, 3-Way, FNPT x FNPT, PTFE |
| Brand | PLAST-O-MATIC |
| For Media | Water |
| Actuator Type | Single-Acting Spring Return |
| Connection Type | FNPT x FNPT |
| Actuator Operation | Air to Spring |
| Diaphragm Material | PTFE |
| Diaphragm Valve Type | 3-Way |
| Connection Type-Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Manufacturer Part Number | BSDA025T-NC-PV |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
