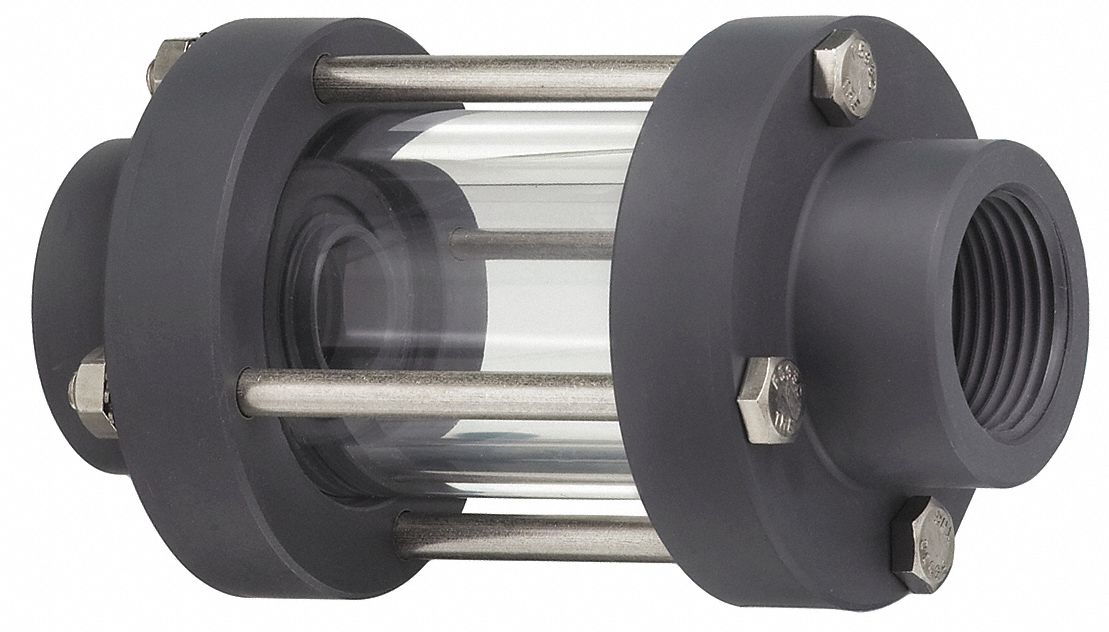

Plast-o-matic 3G-OTH-91282 — Technical Specifications
The PLAST-O-MATIC Double Wall Sight Flow Indicator: PVC is a full-view flow indicator with a 2-inch FNPT connection and NPT pipe threads. It features double walls, an acrylic window, and a Viton seal, with a maximum operating pressure of 140 psi. This unit can be mounted horizontally and allows flow in any direction.
Technical Specifications
| Parameter | Value |
|---|---|
| FNPT | 2 in |
| Type | Double Walls, Pipe Threads, NPT |
| Brand | PLAST-O-MATIC |
| Seal Material | Viton |
| Flow Direction | Any Direction |
| Window Material | Acrylic |
| Mounting Orientation | Horizontal |
| Max. Operating Pressure | 140 psi |
| Manufacturer Part Number | GY200V-PV |
