Plast-o-matic 3G-OTH-91564 — Technical Specifications

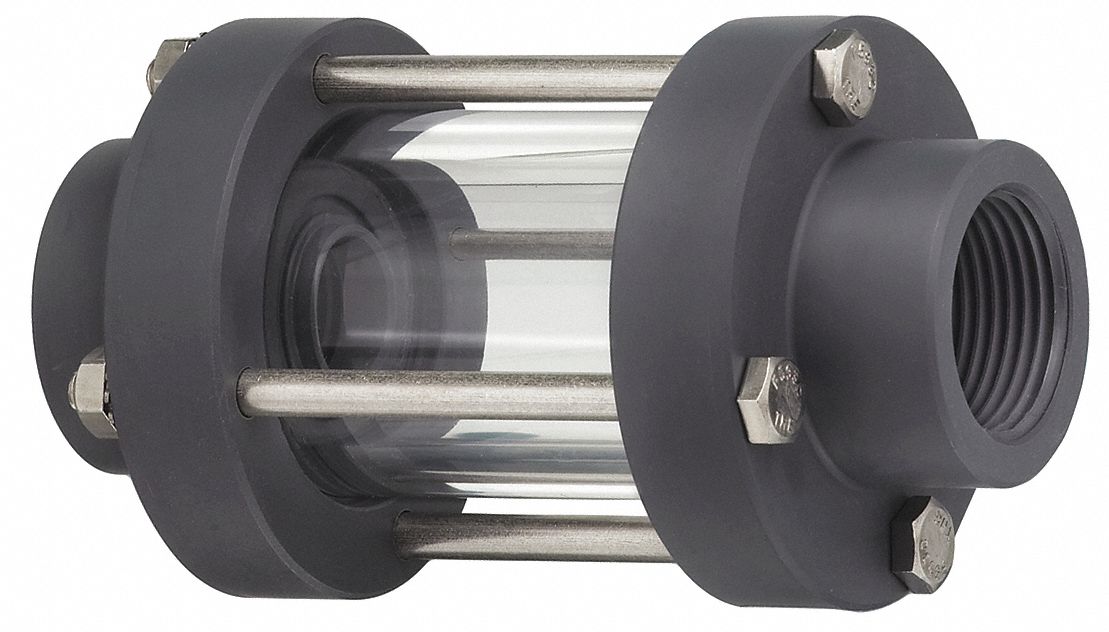

The PLAST-O-MATIC Double Wall Sight Flow Indicator is a full-view flow indicator made of PVC with double walls and 1 1/4 in FNPT pipe threads (NPT). It features a Viton seal, an acrylic window, and a maximum operating pressure of 140 psi. The indicator can be mounted horizontally and allows flow in any direction.
Technical Specifications
| Parameter | Value |
|---|---|
| FNPT | 1 1/4 in |
| Type | Double Walls, Pipe Threads, NPT |
| Brand | PLAST-O-MATIC |
| Seal Material | Viton |
| Flow Direction | Any Direction |
| Window Material | Acrylic |
| Mounting Orientation | Horizontal |
| Max. Operating Pressure | 140 psi |
| Manufacturer Part Number | GY125V-PV |
