Plast-o-matic 3G-OTH-91196 — Technical Specifications

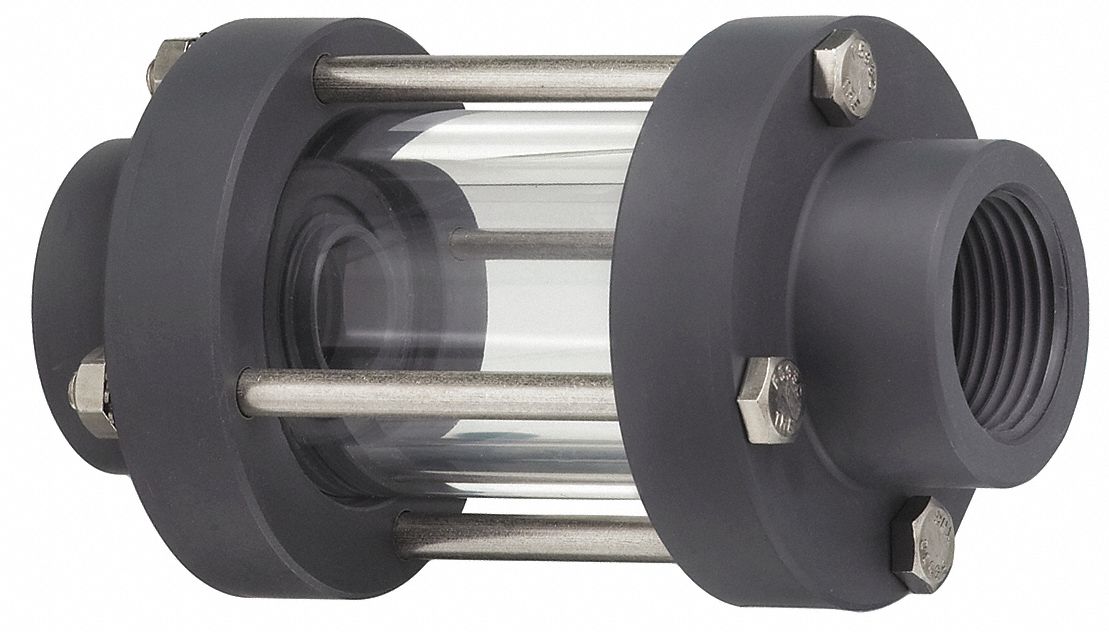

The PLAST-O-MATIC Double Wall Sight Flow Indicator is a full-view flow indicator made of PVC with double walls and 1-inch FNPT pipe threads. It features an acrylic window, Viton seal material, and a maximum operating pressure of 140 psi. This indicator can be mounted vertically and allows flow in any direction.
Technical Specifications
| Parameter | Value |
|---|---|
| FNPT | 1 in |
| Type | Double Walls, Pipe Threads, NPT |
| Brand | PLAST-O-MATIC |
| Seal Material | Viton |
| Flow Direction | Any Direction |
| Window Material | Acrylic |
| Mounting Orientation | Vertical |
| Max. Operating Pressure | 140 psi |
| Manufacturer Part Number | GY100V-PV |
