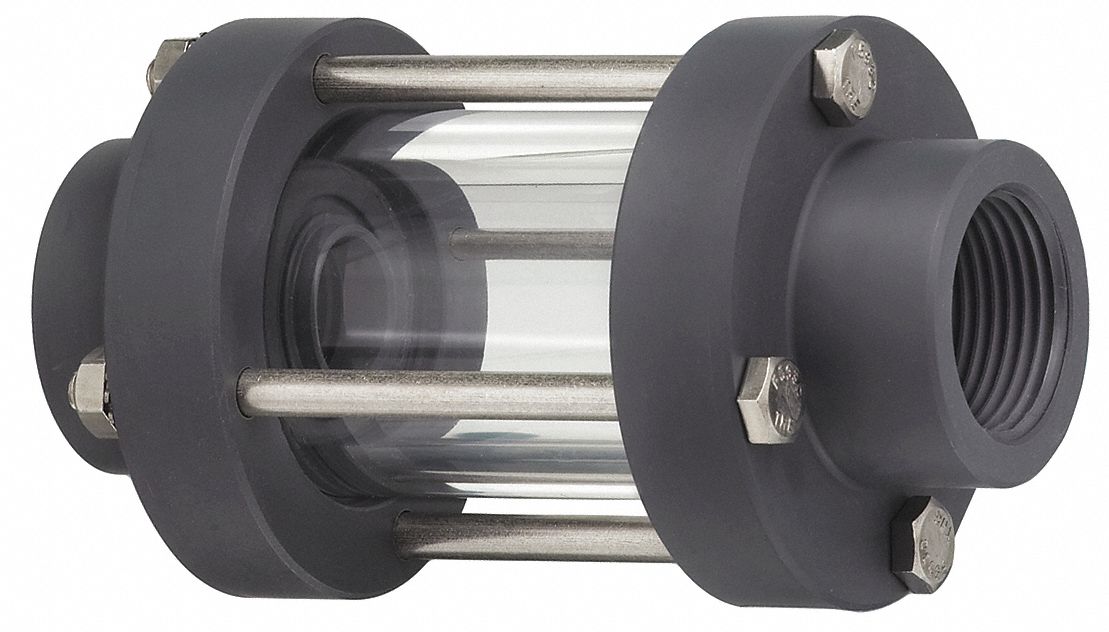

Plast-o-matic 3G-OTH-91188 — Technical Specifications

Name: Plast-o-matic 3G-OTH-91188 PLAST-O-MATIC Single Wall Sight Flow Indicator: PVC, Grade 1, Single Walls, 1 in FNPT, Pipe Threads (MPN GX100V-PV). Key specifications — Brand: PLAST-O-MATIC; Max. Operating Pressure: 140 psi; Seal Material: Viton; Flow Direction: Any Direction; Window Material: Acrylic; Mounting Orientation: Vertical.
Brand: Plast-o-matic

The PLAST-O-MATIC Single Wall Sight Flow Indicator: PVC is a full-view flow indicator designed for visual monitoring of fluid flow. This Grade 1, single-wall unit features 1 in FNPT pipe threads, a Viton seal, and an acrylic window, with a maximum operating pressure of 140 psi. It supports flow in any direction and is intended for vertical mounting orientation.

View Product & Quote

Technical Specifications

Parameter	Value
FNPT	1 in
Type	Grade 1, Single Walls, Pipe Threads
Brand	PLAST-O-MATIC
Seal Material	Viton
Flow Direction	Any Direction
Window Material	Acrylic
Mounting Orientation	Vertical
Max. Operating Pressure	140 psi
Manufacturer Part Number	GX100V-PV
