Pic Gauges 3G-OTH-177139 — Technical Specifications

Name: Pic Gauges 3G-OTH-177139 PIC GAUGES Compound Gauge with Diaphragm Seal: 0 psi to 30 psi, 701DDS-T-254, 2 1/2 in Dial, PTFE (MPN 701DDS-T-254C). Key specifications — Brand: PIC GAUGES; Gauge Case Liquid: None; Seal Fill Liquid: Glycerin; Gauge Case Material: PVDF; Seal Lower Housing Material: 316 Stainless Steel; Accuracy: ±2-1-2%; Gauge Wetted Parts: Brass.
Brand: Pic Gauges

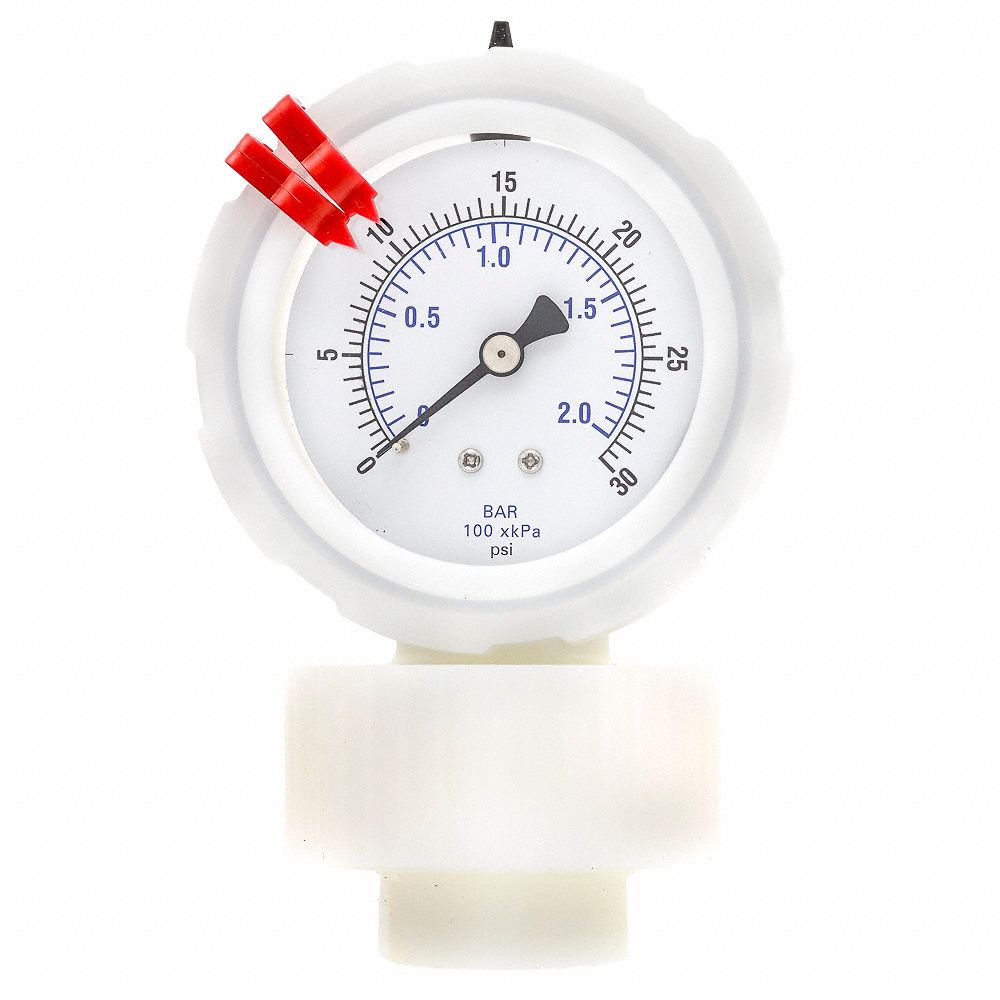

The PIC GAUGES Compound Gauge with Diaphragm Seal (SKU 19RZ40) is a 2 1/2 in dial pressure gauge with a thermoplastic seal, offering a range of 0 psi to 30 psi. It features a PVDF gauge case, brass wetted parts, a 316 stainless steel seal lower housing, and a glycerin seal fill liquid with no gauge case liquid. The gauge has an accuracy of ±2-1-2% and is identified by manufacturer part number 701DDS-T-254C.

View Product & Quote

Technical Specifications

Parameter	Value
Dial	2 1/2 in
Type	701DDS-T-254, PTFE
Brand	PIC GAUGES
Accuracy	±2-1-2%
Seal Fill Liquid	Glycerin
Gauge Case Liquid	None
Gauge Wetted Parts	Brass
Gauge Case Material	PVDF
Manufacturer Part Number	701DDS-T-254C
Seal Lower Housing Material	316 Stainless Steel
