Pcs 3G-OTH-227432 — Technical Specifications

Name: Pcs 3G-OTH-227432 PCS Ejector Pin: Shoulder Pin, Nitrided, Tool Steel, 1/16 in Nom. Dia., Oversized, 8 in Overall Lg (MPN SP5-82 OS-1). Key specifications — attr1132749: +0.062/-0.000 in; attr1110848: PCS; attr1132750: +0.0000/-0.0003 in; attr1132753: 0.03 in.
Brand: Pcs

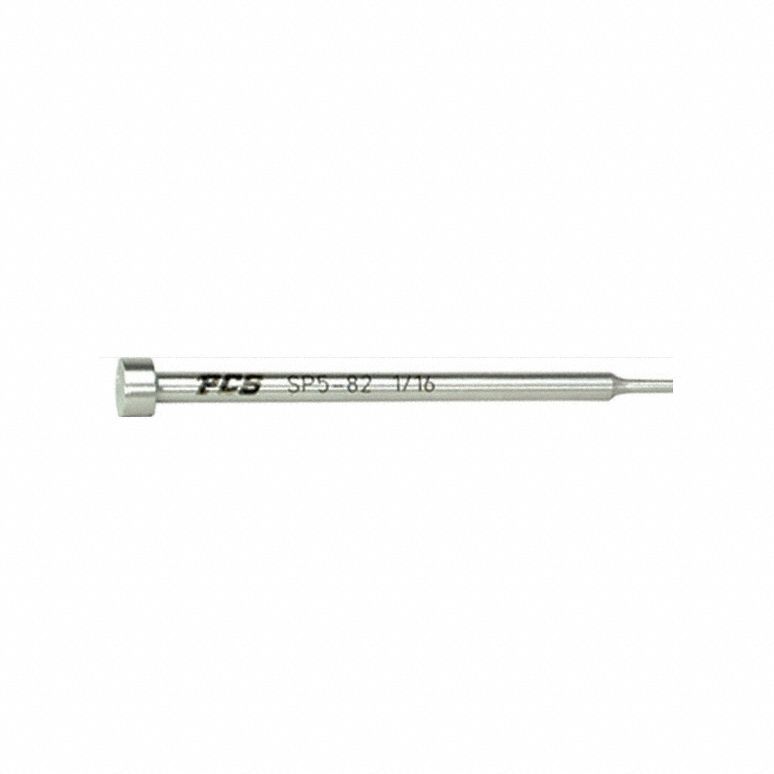

The PCS Ejector Pin: Shoulder Pin is a general purpose stepped ejector pin made of nitrided tool steel. It features a nominal diameter of 1/16 in, an overall length of 8 in, and is oversized with a shoulder diameter tolerance of +0.062/-0.000 in and a body diameter tolerance of +0.0000/-0.0003 in, with a 0.03 in radius.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Nitrided, Tool Steel, Oversized
Nom. Dia.	1/16 in
Overall Lg	8 in
Attr1110848	PCS
Attr1132749	+0.062/-0.000 in
Attr1132750	+0.0000/-0.0003 in
Attr1132753	0.03 in
Manufacturer Part Number	SP5-82 OS-1
