Pbc Linear 3G-OTH-117967 — Technical Specifications

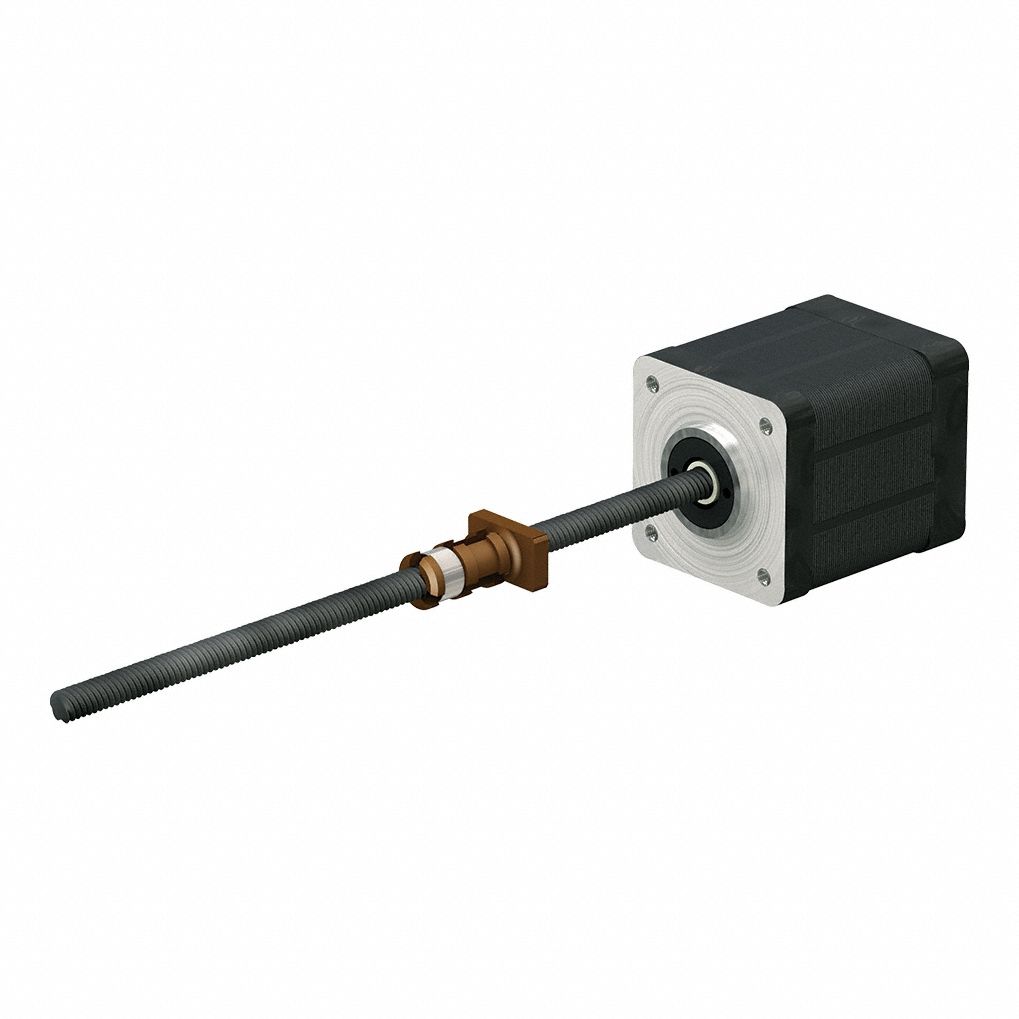

The PBC LINEAR Precision Lead Screw Assembly (SKU 807LZ9) is a 2-phase stepper motor-driven lead screw with a 200 steps per revolution resolution. It features an anti-backlash rectangular nut and an IP40-rated motor with a 29.5 mm length and 0.4 A rated current.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Anti-Backlash, PTFE, Stainless Steel, 300, B |
| Brand | PBC LINEAR |
| Phase | 2 |
| Nut Type | Anti-Backlash |
| Nut Shape | Rectangle |
| Motor Length | 29.5 mm |
| Rated Current | 0.4 A |
| Motor IP Rating | IP40 |
| Steps Per Revolution | 200 |
| Manufacturer Part Number | LSR0601T-0200-VCF-080-NNN-N |
