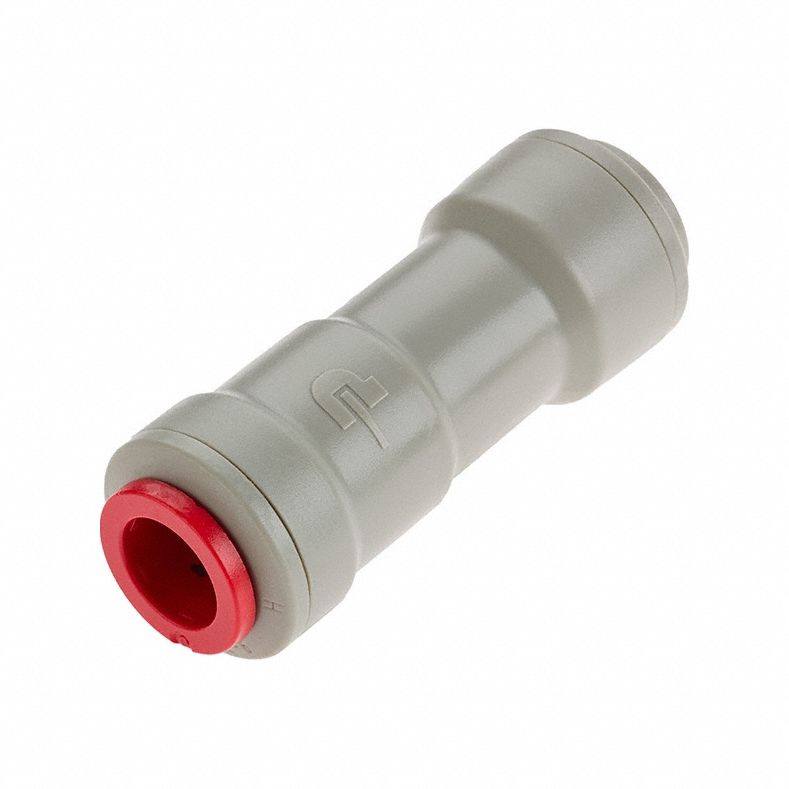

Parker 3G-OTH-436433 — Technical Specifications

Name: Parker 3G-OTH-436433 PARKER Check Valve: Ball, Inline Valve Body, 5/16 in Pipe Size, Acetal, Push x Push, 34°F to 150°F (MPN A5VC5-MG). Key specifications — Standards: FDA; Mounting Orientation: Vertical; Brand: PARKER; Connection Type - Side 2: Push; Valve Series: Truseal; 3-A Compliance: Not Rated; Connection Gender - Side 1: Female; Connection Gender - Side 2: Female.
Brand: Parker

The PARKER Truseal Series A5VC5-MG is an NSF 51 Certified Acetal Ball Check Valve with a 5/16 in pipe size and inline valve body. It features push x push connections with female genders on both sides, is rated for silent check operation, and complies with FDA standards. Designed for vertical mounting, it operates within a temperature range of 34°F to 150°F and is intended for use with beer media.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Inline Valve Body, Acetal, Push x Push, 34°F to 150°F
Brand	PARKER
For Media	Beer
Pipe Size	5/16 in
Standards	FDA
Silent Check	Standard
Valve Series	Truseal
3-A Compliance	Not Rated
Connection Type	Push x Push
Mounting Orientation	Vertical
Includes Counterweight	No Counterweight
Connection Type - Side 1	Push
Connection Type - Side 2	Push
Manufacturer Part Number	A5VC5-MG
Connection Gender - Side 1	Female
Connection Gender - Side 2	Female
