Parker 3G-OTH-436432 — Technical Specifications

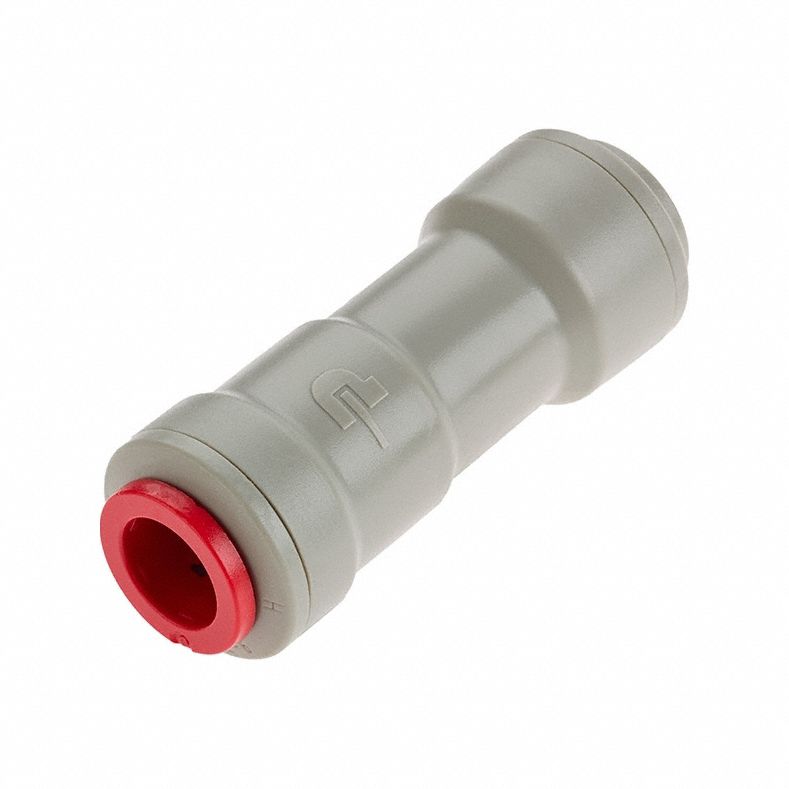

Name: Parker 3G-OTH-436432 PARKER Check Valve: Ball, Inline Valve Body, 1/4 in Pipe Size, Acetal, Push x Push, 34°F to 150°F (MPN A4VC4-MG). Key specifications — Standards: FDA; Mounting Orientation: Vertical; Brand: PARKER; Connection Type - Side 2: Push; Valve Series: Truseal; 3-A Compliance: Not Rated; Connection Gender - Side 1: Female; Connection Gender - Side 2: Female.
Brand: Parker

The PARKER Truseal Series A4VC4-MG is an NSF 51 Certified Acetal Ball Check Valve with a 1/4 in pipe size and inline valve body. It features Push x Push connections with female genders on both sides, is designed for vertical mounting, and is rated for wine media with FDA compliance. The valve operates in a standard silent check configuration without a counterweight, with a temperature range of 34°F to 150°F.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Inline Valve Body, Acetal, Push x Push, 34°F to 150°F
Brand	PARKER
For Media	Wine
Pipe Size	1/4 in
Standards	FDA
Silent Check	Standard
Valve Series	Truseal
3-A Compliance	Not Rated
Connection Type	Push x Push
Mounting Orientation	Vertical
Includes Counterweight	No Counterweight
Connection Type - Side 1	Push
Connection Type - Side 2	Push
Manufacturer Part Number	A4VC4-MG
Connection Gender - Side 1	Female
Connection Gender - Side 2	Female
