Omron 3G-OTH-128414 — Technical Specifications

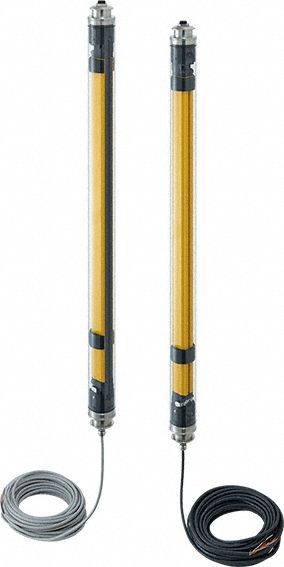

The OMRON F3SG4SRB064025K is a safety light curtain for hand detection, operating on 24V DC with an 870 nm IR LED. It features 92 beams at 20 mm spacing, a 640 mm protected height, and open-ended connections. The unit draws 100 mA at 24V DC from the emitter and 300 mA at 24V DC from the receiver, with a Not Rated enclosure.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Open Ended |
| Beams | 92 |
| Spacing | 20 mm |
| Protected Ht | 640 mm |
| Manufacturer Part Number | F3SG4SRB064025K |
