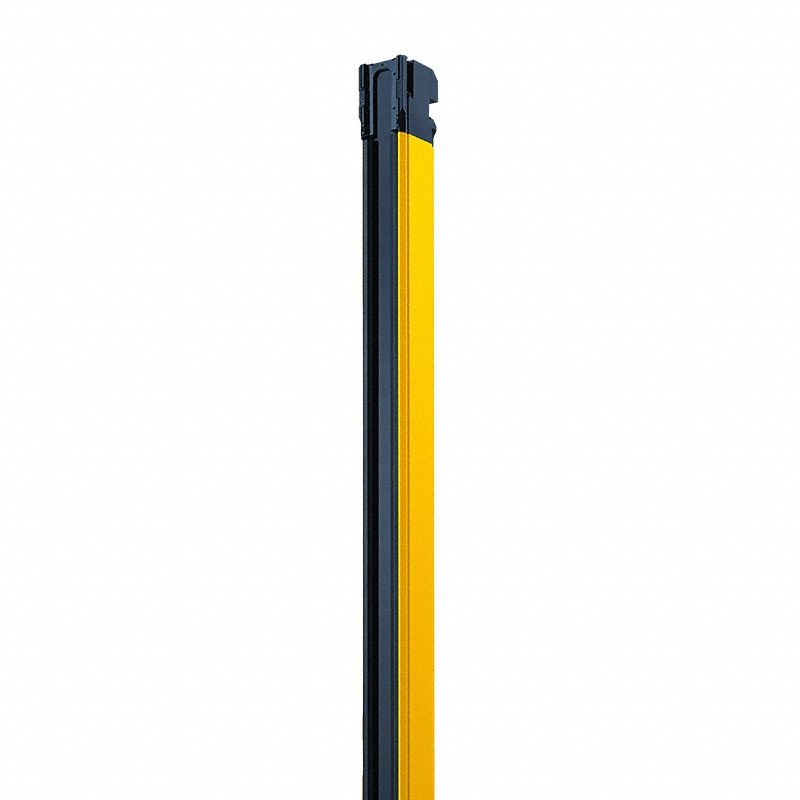

Omron 3G-OTH-36465 — Technical Specifications
The OMRON Safety Light Curtain (SKU 61LU82, MPN F3SG4PGA10704L) is a 24V DC light curtain for body detection, featuring 4 beams with 300 mm spacing and a 1,070 mm protected height. It uses 870 nm IR LED light, provides safety output ratings of 300 mA @ 24V DC, and auxiliary contact rating of 100 mA @ 24V DC. Both receiver and transmitter use M12 electrical connections.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | M12 |
| Beams | 4 |
| Brand | OMRON |
| Spacing | 300 mm |
| Protected Ht | 1,070 mm |
| Type Of Light | 870 nm IR LED |
| AC Voltage Rating | Not Rated |
| DC Voltage Rating | 24V DC |
| Safety Output Ratings | 300 mA @ 24V DC |
| Auxiliary Contact Rating | 100 mA @ 24V DC |
| Manufacturer Part Number | F3SG4PGA10704L |
| Receiver Electrical Connection | M12 |
| Transmitter Electrical Connection | M12 |
