Oilite 3G-OTH-101241 — Technical Specifications

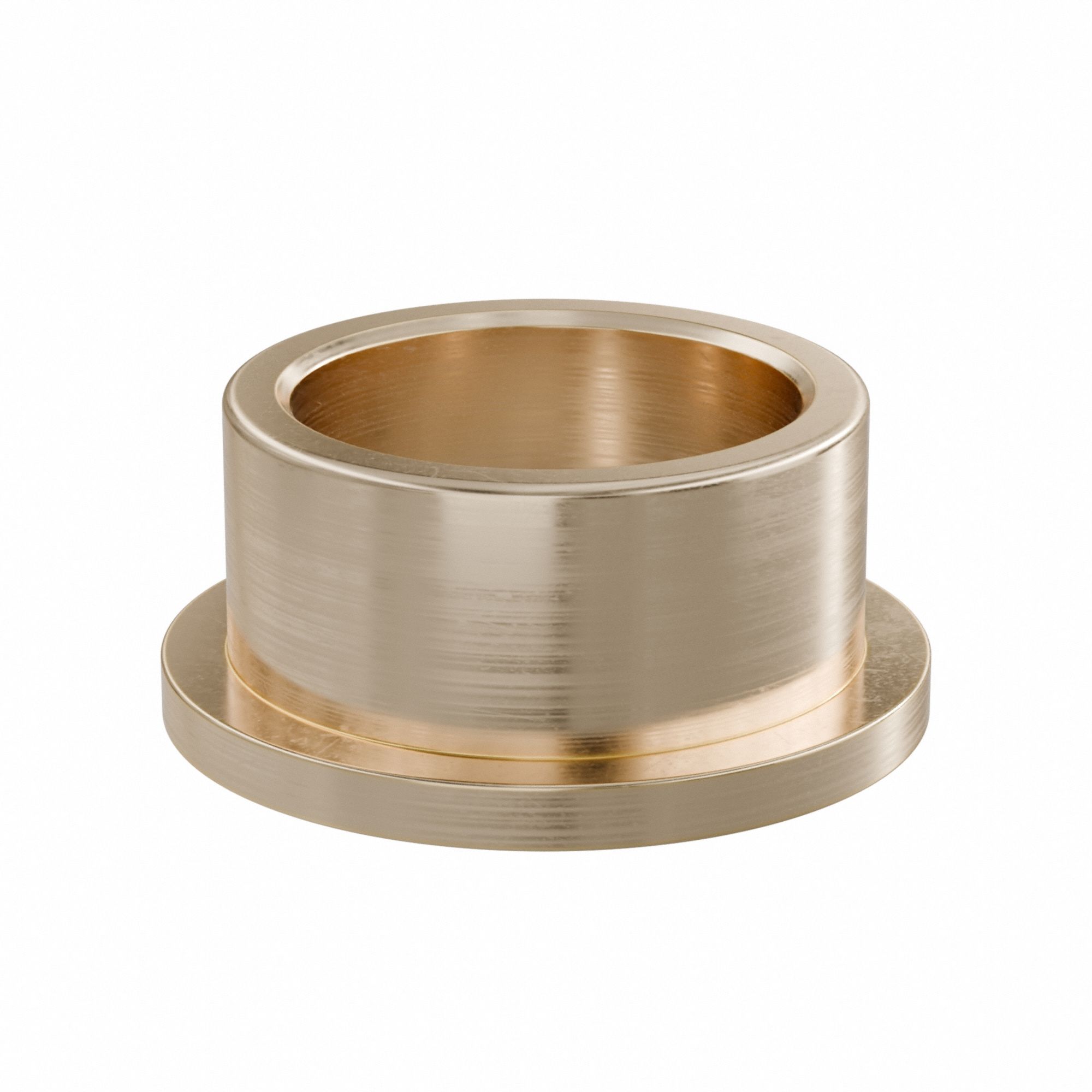

Name: Oilite 3G-OTH-101241 Flanged Sleeve Bearing: Bronze, SAE 841, 30 mm Bore, 38 mm OD, 20 mm Lg, -35°F to 300°F, 2 PK (MPN FFM3038-20B). Key specifications — System of Measurement: Metric; Material Grade: SAE 841; Flange Type: Flanged; Brand: OILITE.
Brand: Oilite

The OILITE Flanged Sleeve Bearing is a lubricated general purpose metallic flanged sleeve bearing made from SAE 841 bronze. This metric bearing has a 30 mm bore, 38 mm outer diameter, and 20 mm length, with an operating temperature range of -35°F to 300°F. It is sold as a pack of 2 under manufacturer part number FFM3038-20B.

View Product & Quote

Technical Specifications

Parameter	Value
Lg	20 mm
OD	38 mm
Bore	30 mm
Type	SAE 841, -35°F to 300°F, 2 PK
Brand	OILITE
Flange Type	Flanged
Material Grade	SAE 841
System Of Measurement	Metric
Manufacturer Part Number	FFM3038-20B
