Oberon 3G-OTH-557312 — Technical Specifications

Name: Oberon 3G-OTH-557312 OBERON Arc Flash Hood: 4 PPE CAT, 140 cal/sq cm ATPV, Aramid ( 18 oz/sq yd ), Ventilated, Black (MPN TCG140B-C+HVS). Key specifications — Size: Universal; Garment Material: Aramid; Includes: Hard Cap; Ventilation System; Brand: OBERON; Hood Window Type: Face Shield Fitted; Ventilated: Yes; Ventilation Type: Hood Ventilation System.
Brand: Oberon

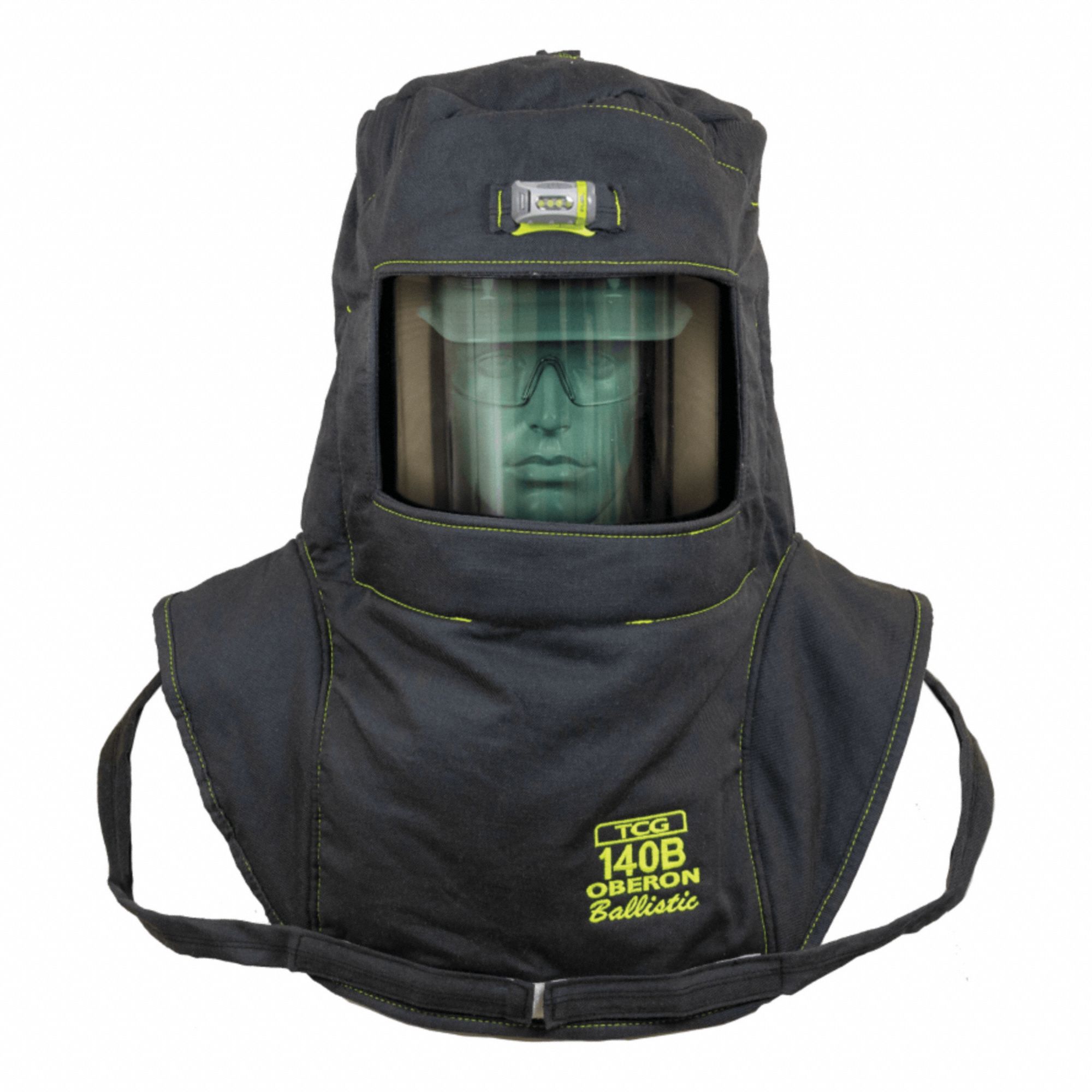

The OBERON Arc Flash Hood is a Category 4 hood with a 140 cal/sq cm ATPV rating, constructed from 18 oz/sq yd Aramid material in a ventilated black design. It includes a hard cap and a Hood Ventilation System, with a polycarbonate face shield fitted window that meets ANSI/ISEA Z87.1 standards. This universal-size hood features True Color Grey (TCG) technology for enhanced visibility.

View Product & Quote

Technical Specifications

Parameter	Value
Size	Universal
Type	140 cal/sq cm ATPV, Aramid ( 18 oz/sq yd ), Ventilated, Black
Brand	OBERON
Color	Black
Features	True Color Grey (TCG)
Includes	Hard Cap
Standards	ANSI/ISEA Z87.1
Lift Front	No
Ventilated	Yes
Window Material	Polycarbonate
Garment Material	Aramid
Hood Window Type	Face Shield Fitted
Ventilation Type	Hood Ventilation System
Manufacturer Part Number	TCG140B-C+HVS
