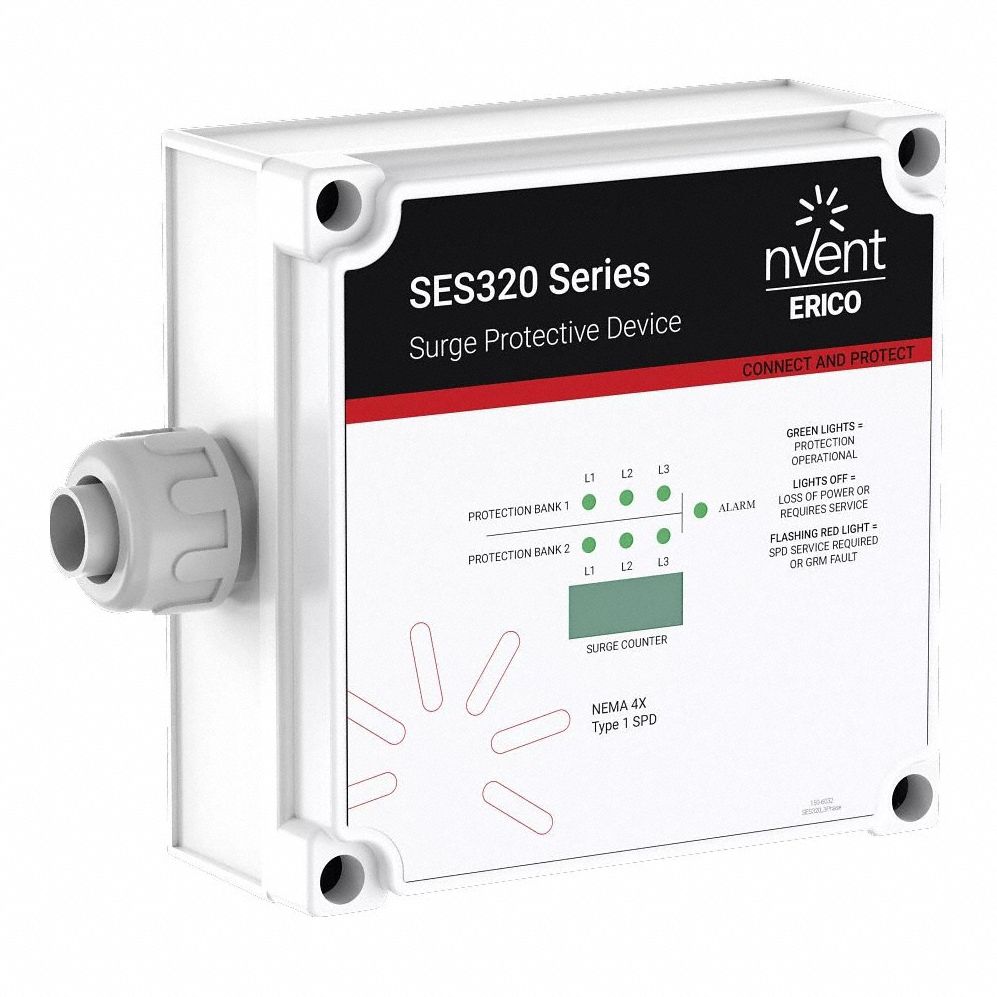

Nvent Erico 3G-OTH-21914 — Technical Specifications

Name: Nvent Erico 3G-OTH-21914 NVENT ERICO Surge Protection Device: Three Phase, 480V AC, 1800 V (L-G)/1800 V (L-L), 550V, 4X (MPN SES320FC480D). Key specifications — Voltage: 480V AC; Max. Continuing Operating Voltage: 550V; Voltage Protection Rating: 1800 V (L-L); Enclosure Material: Polycarbonate; Max. Surge Current per Mode: 20 kA; Brand: NVENT ERICO.
Brand: Nvent Erico

The NVENT ERICO Surge Protection Device (SKU 812DU1) is a three-phase, external surface-mount SPD with a polycarbonate enclosure. It operates at 480V AC with a maximum continuing operating voltage of 550V, a voltage protection rating of 1800 V (L-L), and a maximum surge current per mode of 20 kA.

View Product & Quote

Technical Specifications

Parameter	Value
AC	480V
Type	1800 V (L-G)/1800 V (L-L), 550V, 4X
Brand	NVENT ERICO
Voltage	480V AC
Enclosure Material	Polycarbonate
Manufacturer Part Number	SES320FC480D
Voltage Protection Rating	1800 V (L-L)
Max. Surge Current Per Mode	20 kA
Max. Continuing Operating Voltage	550V
