Nvent Erico 3G-OTH-21886 — Technical Specifications

Name: Nvent Erico 3G-OTH-21886 NVENT ERICO Surge Protection Device: Single Phase, 120/240V AC, 180/360V, Polycarbonate, 4X, 20 kA (MPN SES320B120240SP). Key specifications — Voltage: 120/240V AC; Max. Continuing Operating Voltage: 180/360V; Voltage Protection Rating: 700 V (L-N); Enclosure Material: Polycarbonate; Max. Surge Current per Mode: 20 kA; Brand: NVENT ERICO.
Brand: Nvent Erico

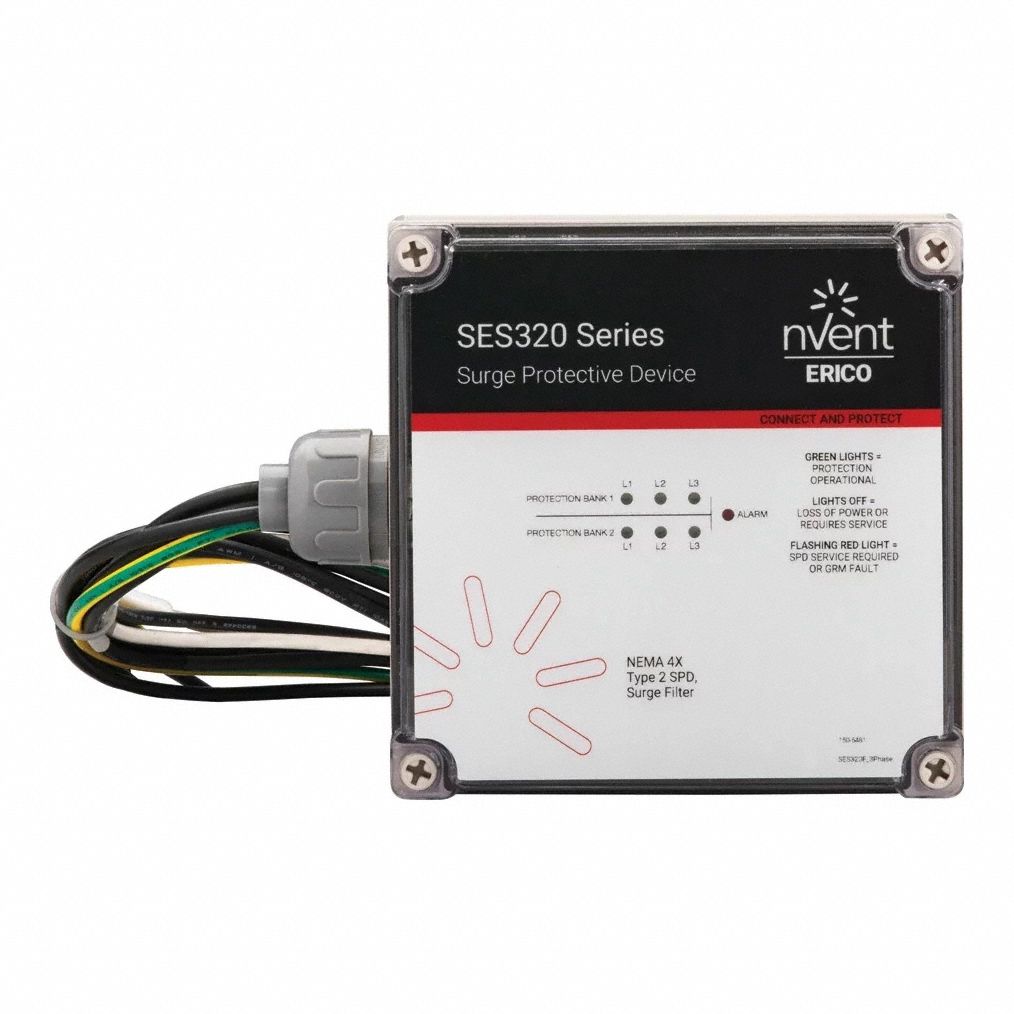

The NVENT ERICO Surge Protection Device (SKU 812DT9, MPN SES320B120240SP) is an external surface-mount SPD for single-phase applications. It operates at 120/240V AC with a maximum continuing operating voltage of 180/360V and a voltage protection rating of 700 V (L-N). The device features a polycarbonate enclosure and a maximum surge current per mode of 20 kA.

View Product & Quote

Technical Specifications

Parameter	Value
AC	120/240V
Type	180/360V, Polycarbonate, 4X, 20 kA
Brand	NVENT ERICO
Voltage	120/240V AC
Enclosure Material	Polycarbonate
Manufacturer Part Number	SES320B120240SP
Voltage Protection Rating	700 V (L-N)
Max. Surge Current Per Mode	20 kA
Max. Continuing Operating Voltage	180/360V
