Nvent Erico 3G-OTH-21865 — Technical Specifications

Name: Nvent Erico 3G-OTH-21865 NVENT ERICO Surge Protection Device: Single Phase, 240V AC, 1000 V (L-PE)/1000 V (N-PE)/1200 V (L-L) (MPN SES160B240V). Key specifications — Voltage: 240V AC; Max. Continuing Operating Voltage: 350V; Voltage Protection Rating: 1200 V (L-L); Enclosure Material: Polycarbonate; Max. Surge Current per Mode: 20 kA; Brand: NVENT ERICO.
Brand: Nvent Erico

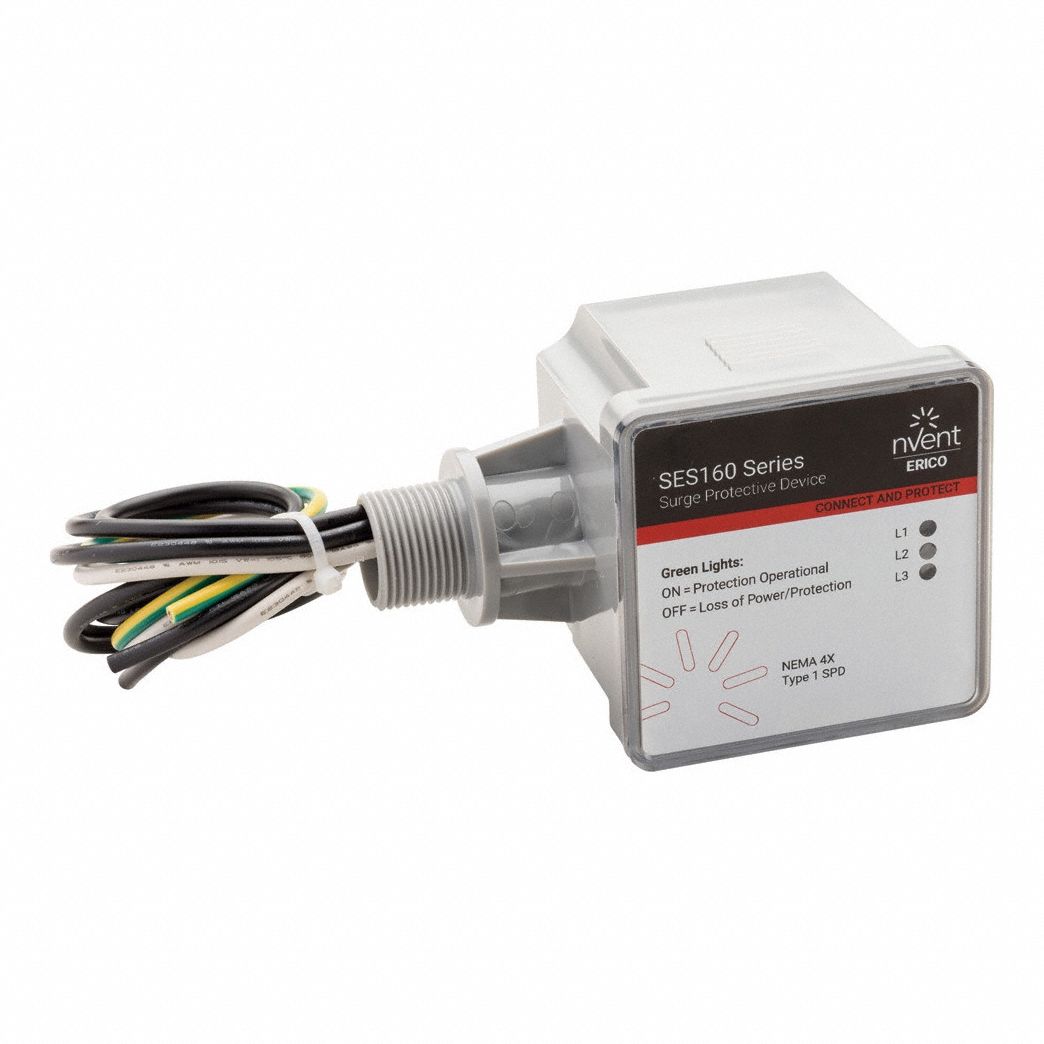

The NVENT ERICO Surge Protection Device (SKU 812DT6) is a single-phase, external surface-mount SPD with a polycarbonate enclosure. It operates at 240V AC with a maximum continuing operating voltage of 350V and a voltage protection rating of 1200 V (L-L). The device provides a maximum surge current per mode of 20 kA.

View Product & Quote

Technical Specifications

Parameter	Value
AC	240V
Type	1000 V (L-PE)/1000 V (N-PE)/1200 V (L-L)
Brand	NVENT ERICO
Voltage	240V AC
Enclosure Material	Polycarbonate
Manufacturer Part Number	SES160B240V
Voltage Protection Rating	1200 V (L-L)
Max. Surge Current Per Mode	20 kA
Max. Continuing Operating Voltage	350V
