Ntn 3G-OTH-105117 — Technical Specifications

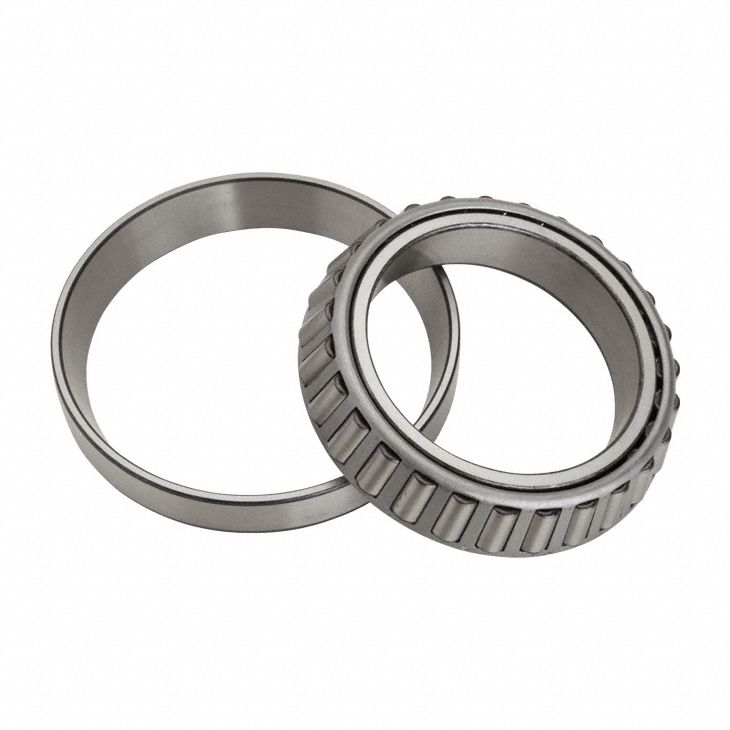

The NTN 566/563 is a tapered roller bearing assembly with an inch system of measurement, featuring a 2 3/4 in bore, 5 in OD, and 1.424 in cone width. It is constructed with a carbon steel ring and a pressed steel cage. This assembly is identified by the bearing industry number 566/563 and the manufacturer part number 566/563.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 5 in |
| Bore | 2 3/4 in |
| Type | 566/563 |
| Brand | NTN |
| Cone Wd | 1.424 in |
| Cage Material | Pressed Steel |
| Ring Material | Carbon Steel |
| System Of Measurement | Inch |
| Bearing Industry Number | 566/563 |
| Manufacturer Part Number | 566/563 |
