Ntn 3G-OTH-103500 — Technical Specifications

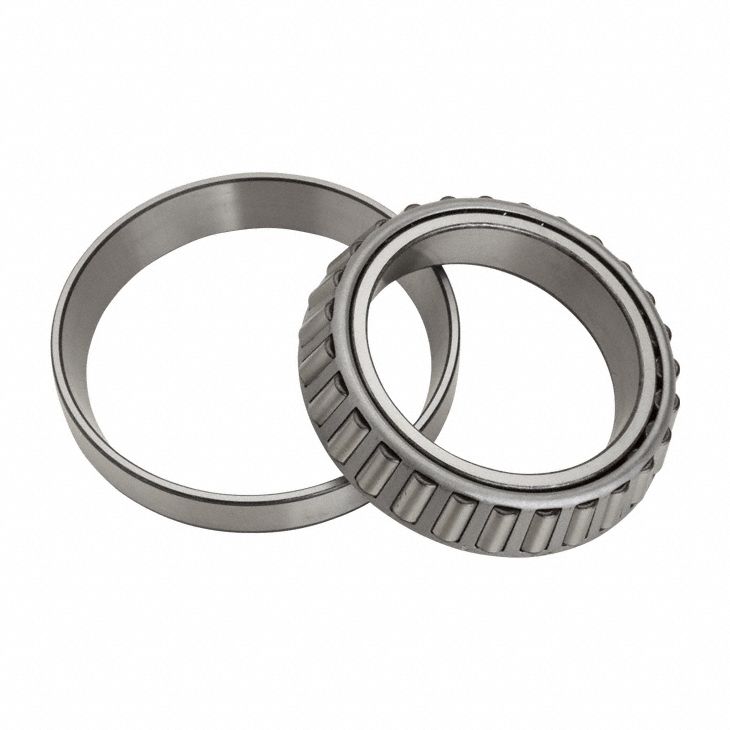

The NTN Tapered Roller Bearing Assembly: 32309 (SKU 805Z24) is a metric tapered roller bearing with a 45 mm bore, 100 mm OD, 36 mm cone width, and 30 mm cup width. It features a carbon steel ring and a pressed steel cage, identified by Bearing Industry Number 32309 and Manufacturer Part Number 32309U.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 100 mm |
| Bore | 45 mm |
| Brand | NTN |
| Cup Wd | 30 mm |
| Cone Wd | 36 mm |
| Cage Material | Pressed Steel |
| Ring Material | Carbon Steel |
| System Of Measurement | Metric |
| Bearing Industry Number | 32309 |
| Manufacturer Part Number | 32309U |
