Ntn 3G-OTH-101566 — Technical Specifications

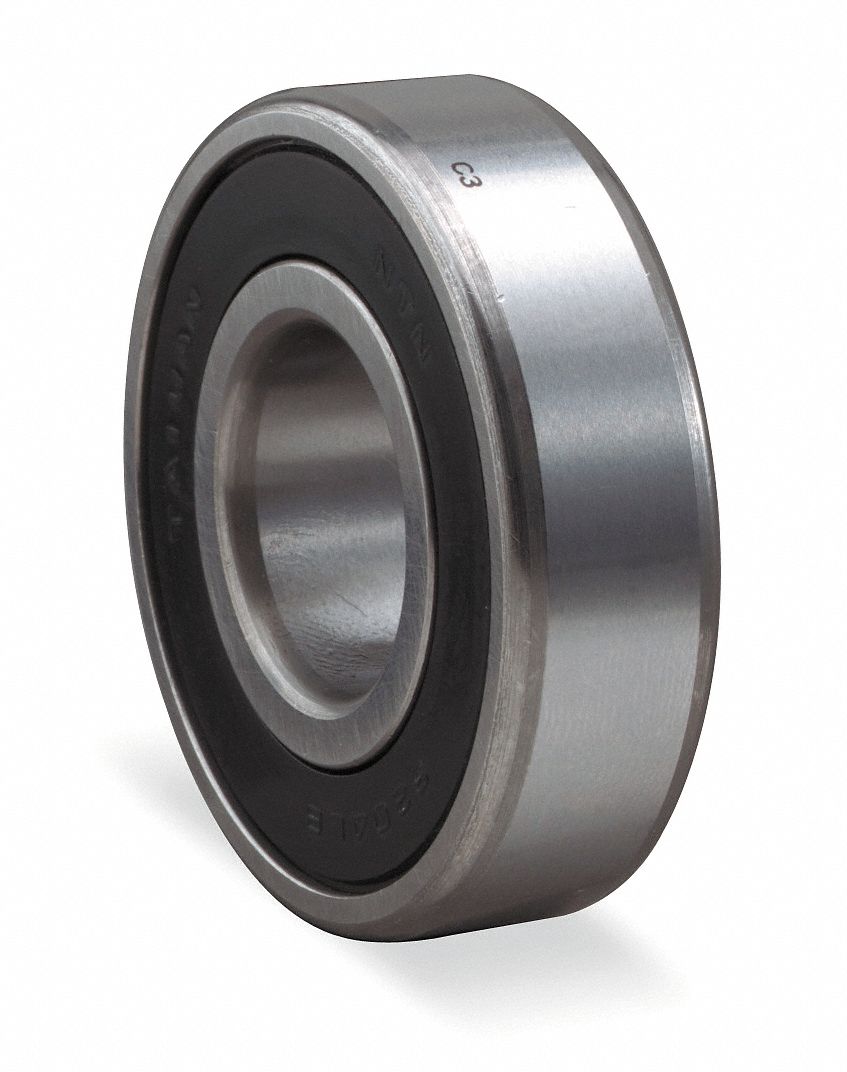

The NTN Radial Ball Bearing: 6206 is a general purpose radial ball bearing from NTN, featuring a double-sealed, non-contact seal design. It has a 30 mm bore, 62 mm outer diameter, and 16 mm width, with the manufacturer part number 6206LLBC3/L627. This metric bearing is identified by the bearing industry number 6206.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 62 mm |
| Wd | 16 mm |
| Bore | 30 mm |
| Type | Dbl Sealed, Non-Contact Seal |
| System Of Measurement | Metric |
| Bearing Industry Number | 6206 |
| Manufacturer Part Number | 6206LLBC3/L627 |
