Ntn 3G-OTH-100819 — Technical Specifications

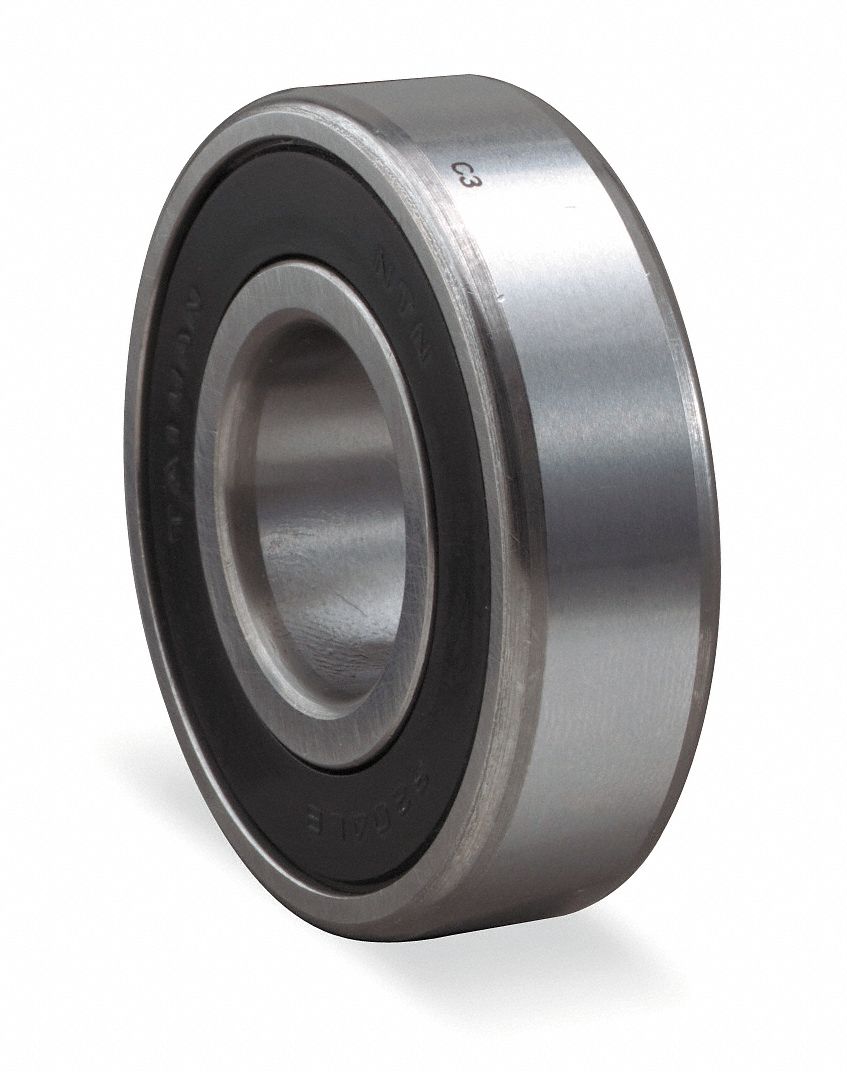

The NTN Radial Ball Bearing 6203 is a general purpose radial ball bearing with a metric system of measurement. It features a double-sealed, non-contact seal design, with a 17 mm bore, 40 mm outer diameter, and 12 mm width, identified by bearing industry number 6203 and manufacturer part number 6203LLBC3/L627.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 40 mm |
| Wd | 12 mm |
| Bore | 17 mm |
| Type | Dbl Sealed, Non-Contact Seal |
| System Of Measurement | Metric |
| Bearing Industry Number | 6203 |
| Manufacturer Part Number | 6203LLBC3/L627 |
