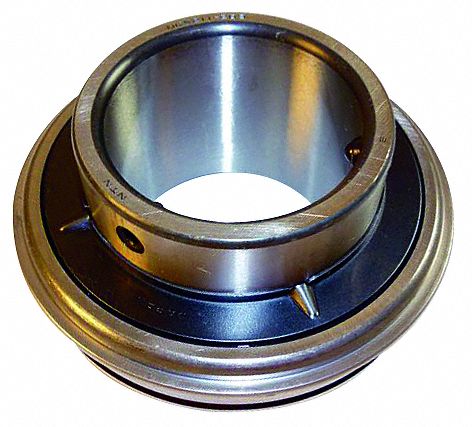

Ntn 3G-OTH-99462 — Technical Specifications
The NTN UCS208-108LD1NR is a retaining-ring cylindrical insert bearing with a radial/deep groove ball design. It features a 1 1/2 in bore, 3 9/64 in OD, and 0.826 in outer ring width, with double-sealed closure and set screw locking. This inch-system bearing is identified by industry number UCS208-108LD1NR.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 3 9/64 in |
| Bore | 1 1/2 in |
| Type | Set Screws |
| Brand | NTN |
| Closure | Double Sealed |
| Outer Ring Wd | 0.826 in |
| Bearing Insert Type | Radial/Deep Groove Ball |
| System Of Measurement | Inch |
| Bearing Industry Number | UCS208-108LD1NR |
| Manufacturer Part Number | UCS208-108LD1NR |
