Ntn 3G-OTH-104177 — Technical Specifications

Name: Ntn 3G-OTH-104177 NTN Pillow Block Bearing: 2 7/16 in Bore, Cast Iron, Set Screws, 2 63/64 in Shaft Ht, 250°F Max Temp (MPN UCPX12-207D1). Key specifications — Brand: NTN; Mounting Bolt Size: 3/4 in; System of Measurement: Inch.
Brand: Ntn

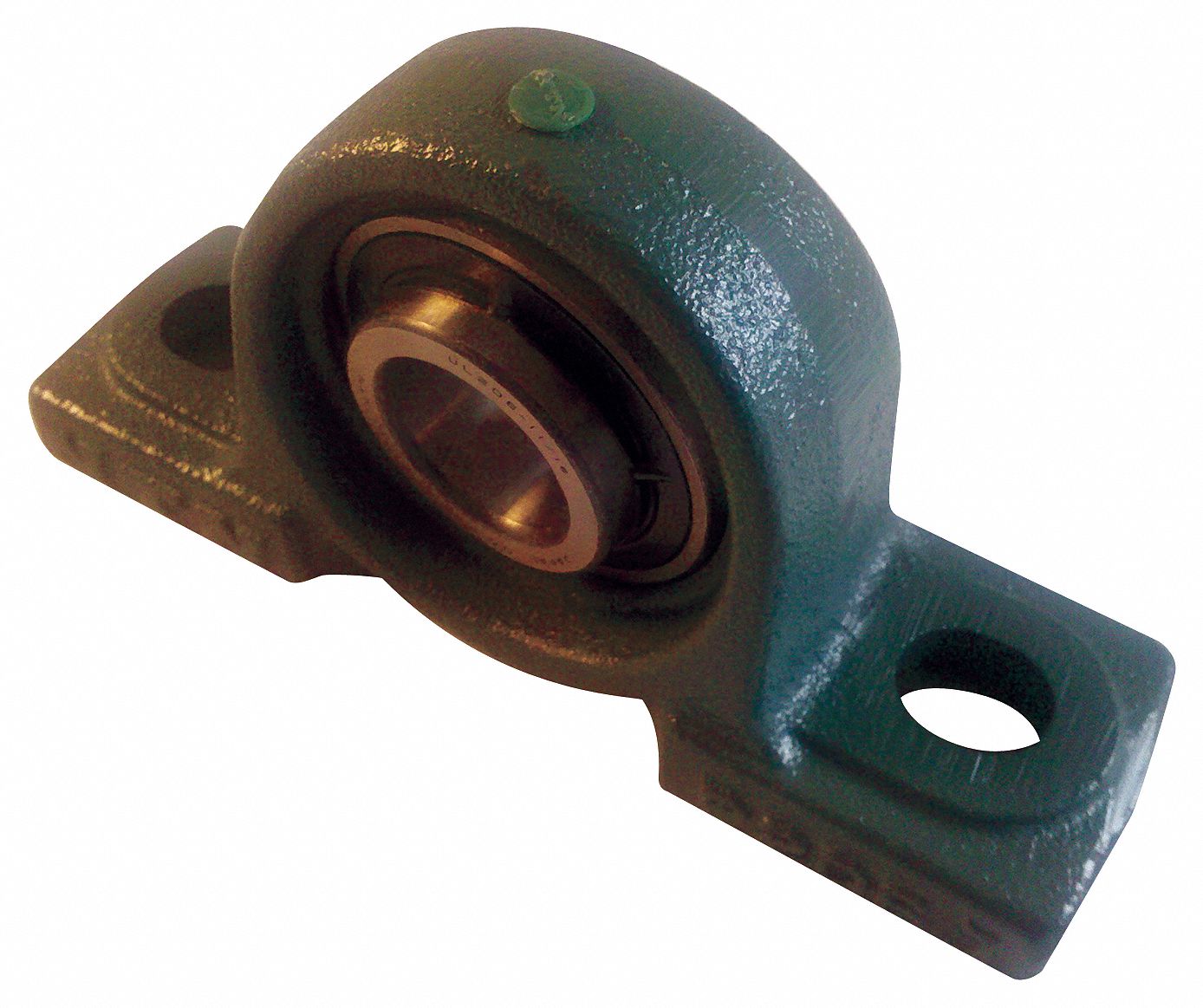

The NTN UCPX12-207D1 is a medium duty pillow block ball bearing with a 2 7/16 in bore, constructed from cast iron and featuring set screw locking. This inch-system unit has a 2 63/64 in shaft height, a 3/4 in mounting bolt size, and a maximum operating temperature of 250°F.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Cast Iron, Set Screws
Brand	NTN
Max Temp	250°F
Shaft Ht	2 63/64 in
Mounting Bolt Size	3/4 in
System Of Measurement	Inch
Manufacturer Part Number	UCPX12-207D1
