Ntn 3G-OTH-109004 — Technical Specifications

Name: Ntn 3G-OTH-109004 NTN Pillow Block Bearing: 1 15/16 in Bore, Cast Iron, Set Screws, 2 1/4 in Shaft Ht, 3,100 RPM, Open (MPN UCP210-115D1). Key specifications — Brand: NTN; Maximum Speed: 3,100 RPM; Mounting Bolt Size: 5/8 in; System of Measurement: Inch.
Brand: Ntn

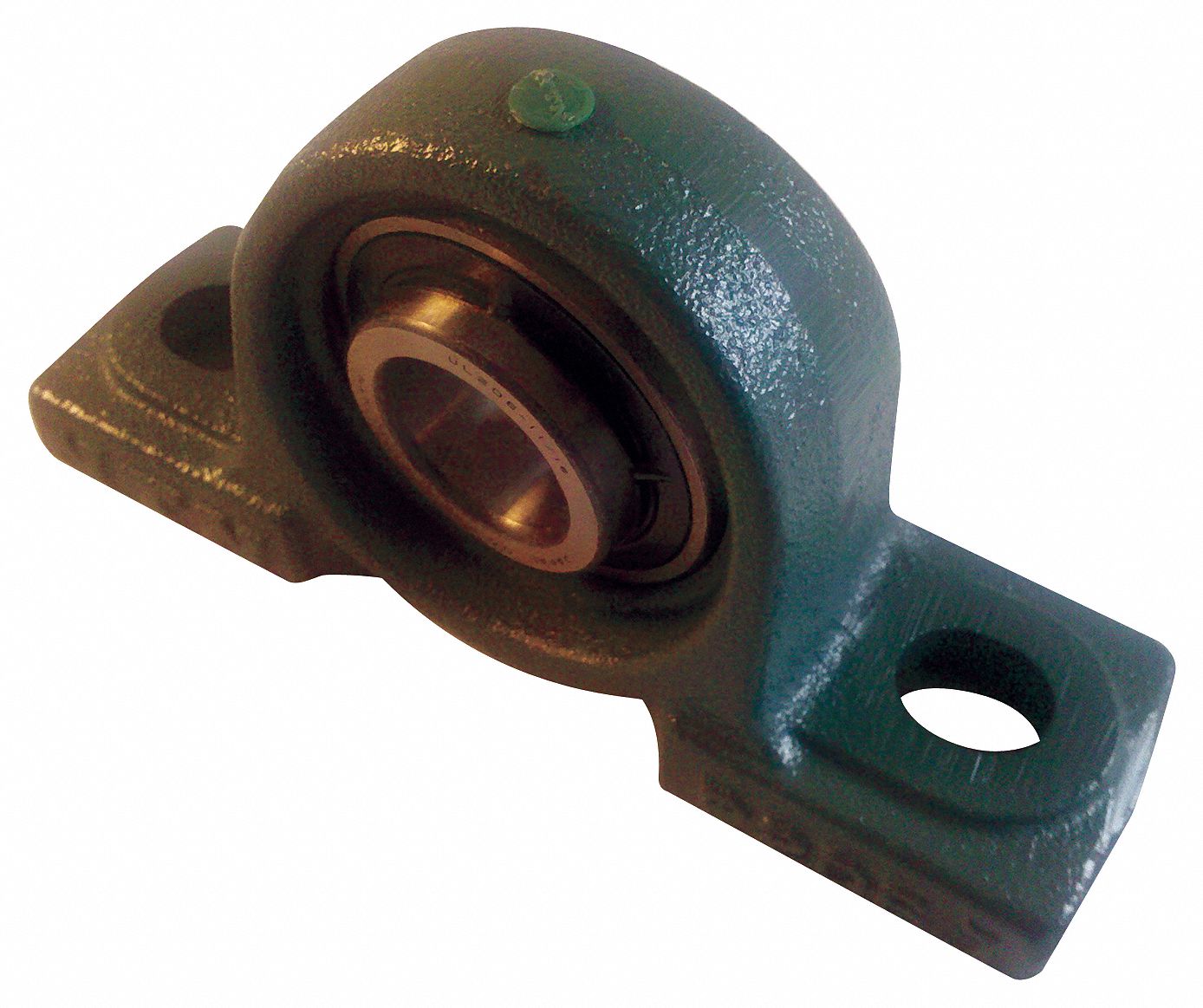

The NTN UCP210-115D1 is a general purpose pillow block ball bearing with a 1 15/16 in bore, constructed with a cast iron housing and set screw locking. It has a maximum speed of 3,100 RPM, a mounting bolt size of 5/8 in, and a shaft height of 2 1/4 in, using the inch system of measurement.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Cast Iron, Set Screws, 3,100 RPM, Open
Brand	NTN
Shaft Ht	2 1/4 in
Maximum Speed	3,100 RPM
Mounting Bolt Size	5/8 in
System Of Measurement	Inch
Manufacturer Part Number	UCP210-115D1
