Ntn 3G-OTH-113616 — Technical Specifications

Name: Ntn 3G-OTH-113616 NTN 2 Bolt Flange Bearing: Radial Ball, 1 3/16 in Bore, Polymer, Set Screws, 5 53/64 in Lg, Rhombus (MPN SUCNFL206-19). Key specifications — Bore Type: Cylindrical; Brand: NTN; Lubricant Material: FDA/USDA-H1 Solid Grease; Mounting Bolt Size: 3/8 in; System of Measurement: Inch; Included Bearing Cap: None.
Brand: Ntn

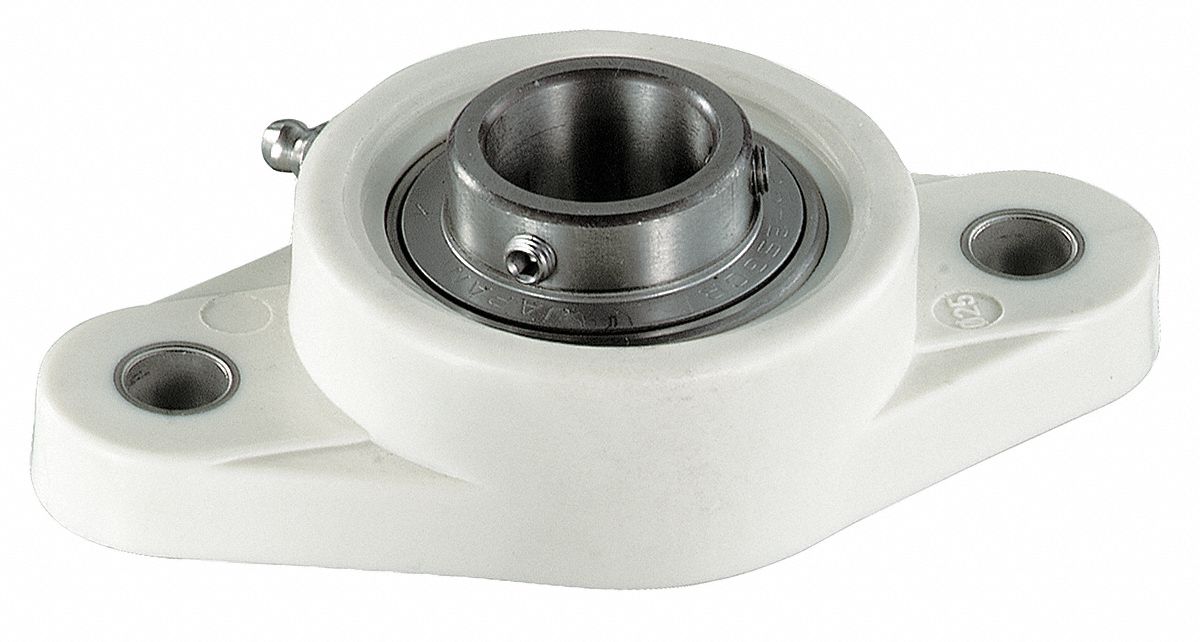

The NTN SUCNFL206-19 is a food-grade flange-mount ball bearing with a 1 3/16 in cylindrical bore, designed for inch-system applications. It features a polymer housing, set screw locking, and a 5 53/64 in rhombus flange length, with a 3/8 in mounting bolt size. The bearing is lubricated with FDA/USDA-H1 solid grease, making it suitable for food-processing environments.

View Product & Quote

Technical Specifications

Parameter	Value
Lg	5 53/64 in
Bore	1 3/16 in
Type	Polymer, Set Screws, Rhombus
Brand	NTN
Bore Type	Cylindrical
Lubricant Material	FDA/USDA-H1 Solid Grease
Mounting Bolt Size	3/8 in
Included Bearing Cap	None
System Of Measurement	Inch
Manufacturer Part Number	SUCNFL206-19
