Ntn 3G-OTH-100182 — Technical Specifications

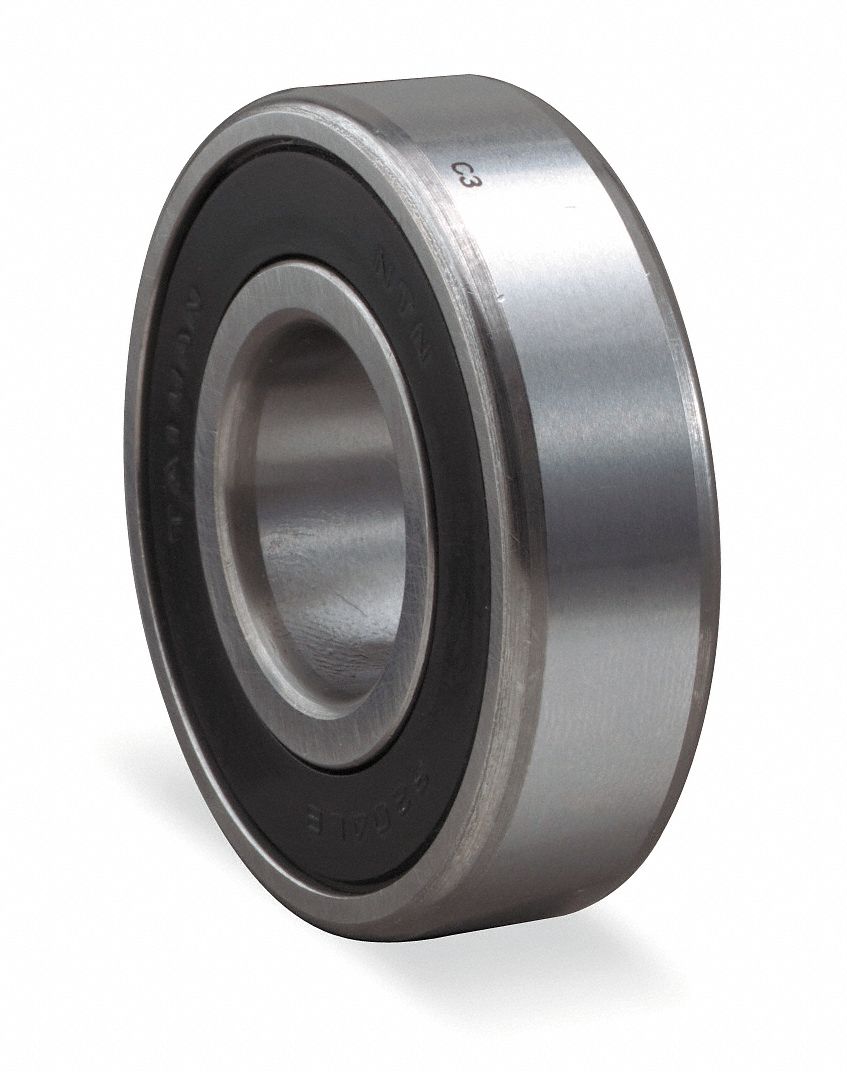

The NTN Radial Ball Bearing, model 6301, is a general purpose radial ball bearing with a metric system of measurement. It features a double sealed, non-contact seal design, with a 12 mm bore, 37 mm outer diameter, and 12 mm width, identified by the manufacturer part number 6301LLBC3/L627.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 37 mm |
| Wd | 12 mm |
| Bore | 12 mm |
| Type | Dbl Sealed, Non-Contact Seal |
| System Of Measurement | Metric |
| Bearing Industry Number | 6301 |
| Manufacturer Part Number | 6301LLBC3/L627 |
