Ntn 3G-OTH-100750 — Technical Specifications

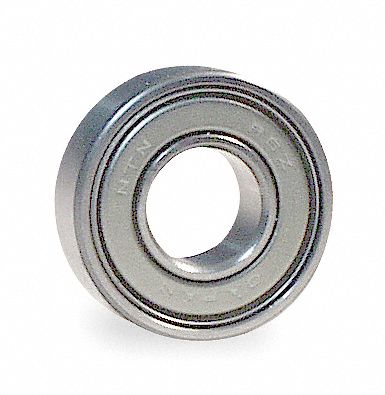

The NTN Radial Ball Bearing: R20 is a high-temperature radial ball bearing with an inch system of measurement. It features a double shield design, a 1 1/4 in bore, a 2 1/4 in OD, and a 0.5 in width, with an alloy steel ring. The bearing industry number is R20, and the manufacturer part number is R20ZZ/2AS.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 2 1/4 in |
| Wd | 0.5 in |
| Bore | 1 1/4 in |
| Type | Dbl Shield, Alloy Steel Ring |
| System Of Measurement | Inch |
| Bearing Industry Number | R20 |
| Manufacturer Part Number | R20ZZ/2AS |
