Ntn 3G-OTH-106686 — Technical Specifications

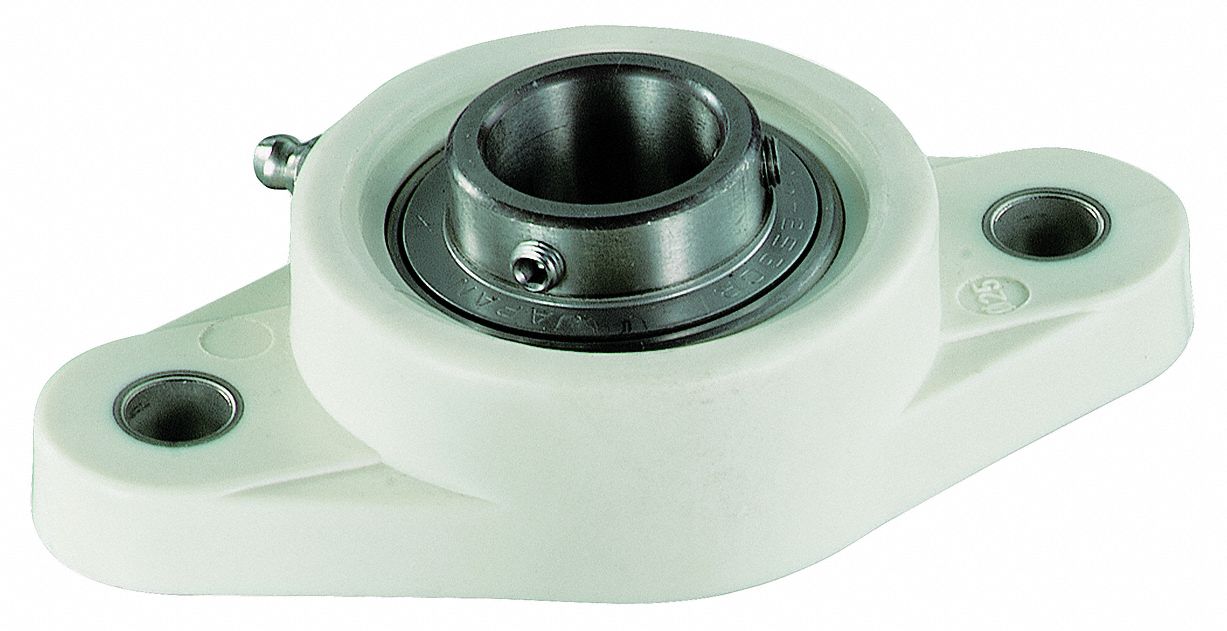

The NTN SUCNFL208 is a metric 2-bolt flange-mount radial ball bearing with a 40 mm cylindrical bore, designed for food-grade applications. It features FDA/USDA-H1 solid grease lubrication and a polymer housing with set screws, measuring 175 mm in length and 51.7 mm in width. The unit uses M12 mounting bolts and does not include a bearing cap.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 175 mm |
| Wd | 51.7 mm |
| Bore | 40 mm |
| Type | Polymer, Set Screws |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | FDA/USDA-H1 Solid Grease |
| Mounting Bolt Size | M12 |
| Included Bearing Cap | None |
| System Of Measurement | Metric |
| Manufacturer Part Number | SUCNFL208 |
