Ntn 3G-OTH-108138 — Technical Specifications

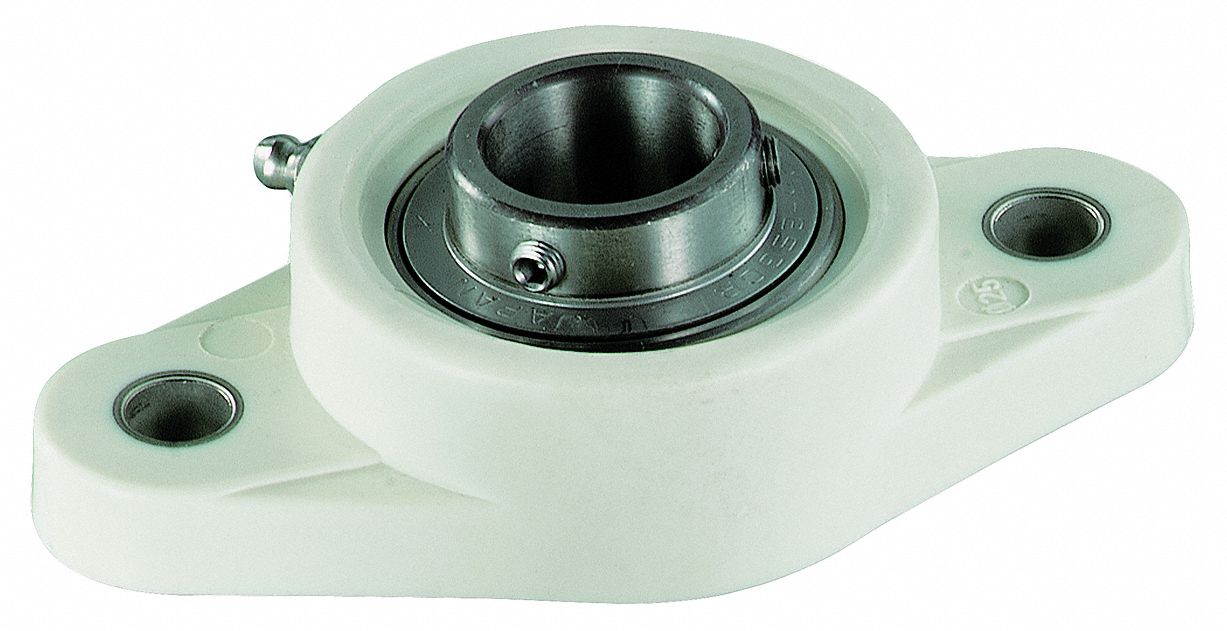

The NTN SUCNFL204 is a metric 2-bolt flange-mount radial ball bearing with a 20 mm cylindrical bore, designed for food-grade applications. It features FDA/USDA-H1 solid grease lubrication, a polymer housing, and set-screw locking, with M10 mounting bolts and dimensions of 65 mm length and 33.7 mm width.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 65 mm |
| Wd | 33.7 mm |
| Bore | 20 mm |
| Type | Polymer, Set Screws |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | FDA/USDA-H1 Solid Grease |
| Mounting Bolt Size | M10 |
| Included Bearing Cap | None |
| System Of Measurement | Metric |
| Manufacturer Part Number | SUCNFL204 |
