Ntn 3G-OTH-104140 — Technical Specifications

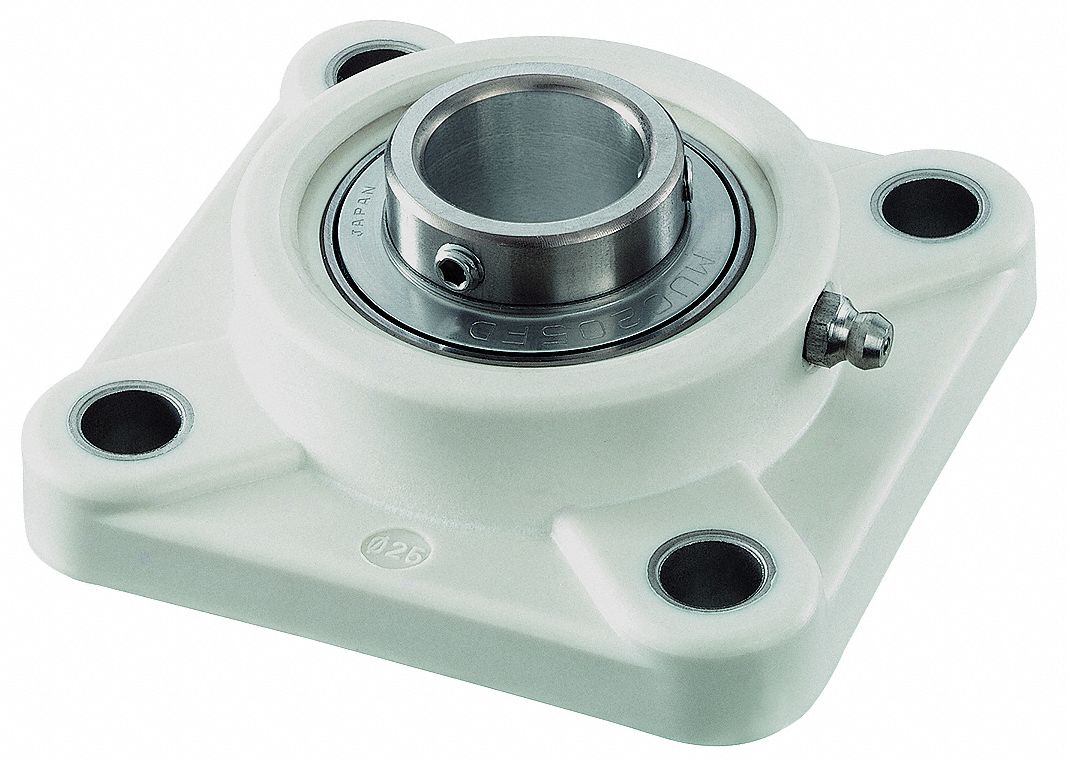

The NTN 4 Bolt Flange Bearing is a food-grade flange-mount radial ball bearing with a 40 mm cylindrical bore. It features FDA/USDA-H1 solid grease lubrication, M12 mounting bolts, and a polymer housing measuring 130 mm in length and 53.2 mm in width. This metric unit (MPN SUCFPL208) is designed for industrial applications requiring sanitary lubrication.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 130 mm |
| Wd | 53.2 mm |
| Bore | 40 mm |
| Type | Polymer, Set Screws |
| Brand | NTN |
| Bore Type | Cylindrical |
| Lubricant Material | FDA/USDA-H1 Solid Grease |
| Mounting Bolt Size | M12 |
| Included Bearing Cap | None |
| System Of Measurement | Metric |
| Manufacturer Part Number | SUCFPL208 |
